This item is Discontinued.

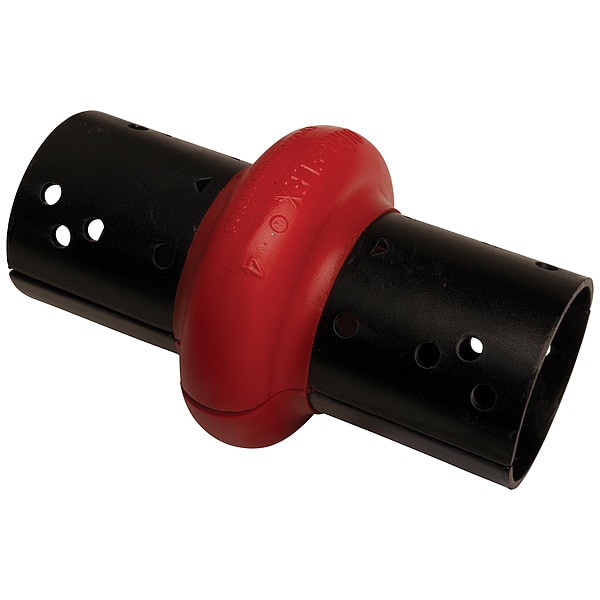

Tb Woods Dura-Flex Tire Coupling Spacer Element, WES20 WES20

Dura-Flex Tire Coupling Spacer Element, WES20 (Discontinued)

  • Mfr # WES20
  • Zoro # G4271547
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WES20
Zoro #
G4271547
UPC #
698672118880
Country of Origin
United States

Dimensions

Size - Tire Couplings
WES20
Outside Dia.
7.36 in
Length
9.35 in
Height
7.36 in
Coupling Size
WE20
Tire Outside Diameter
7.36 in
Element Overall Length
11.17 in

Details

Application
Blowers, Compressors, Fans, Generators Numerous Industrial Applications, Including Pumps, Motors
Item - Tire Coupling Elements
Tire Coupling Spacer Element
HP Rating @ 100 RPM
3.65 hp
HP Rating @ 1800 RPM
65.69 hp
Max. RPM
4,800 RPM
HP Rating @ 3600 RPM
125.9 hp
HP Rating @ 1200 RPM
43.79 hp
Rated Torque
2,300 in-lb
Insert Material
Polyether Urethane/Steel
Insert Design
Spacer
Item
Tire Coupling Spacer Element
Operating Temp.
-40 Degrees to 200 Degrees F
Includes
Hardware Packet Including Cap Screws
Maximum Operating Temperature
200 Degrees F
Element Flex Material
Polyether Urethane
Torsional Stiffness
27,600 in-lb/rad
Weight
6 lb
Maximum Hub Spacing
0.25 in
Element Type
Spacer Center Element
Angular Misalignment
3 Degrees
Resistance Properties
Chemical Resistant
Maximum Torque
2,300 in-lb
For Misalignment Type
Angular, Parallel
Horsepower @ 100 RPM
3.7 hp
Element Metal Material
Steel
Horsepower @ RPM
128 hp @ 3,500 RPM, 42 hp @ 1,160 RPM, 64 hp @1,750 RPM
Features
Shock Absorbant, No Lubrication Required
Maximum Speed
4,800 RPM
System of Measurement
Inch
Minimum Operating Temperature
-40 Degrees F
Parallel Misalignment
0.09375 in

Description

Tire Coupling Spacer Element, Angular Misalignment 3 Degrees , Coupling Size WE20, Horsepower @ 100 RPM 3.7 hp, Maximum Speed 4,800 RPM, Maximum Torque 2,300 in-lb, Maximum Hub Spacing 0.25 in, Tire Outside Diameter 7.36 in, Element Overall Length 11.17 in, Parallel Misalignment 0.09375 in, Element Type Spacer Center Element, Weight 6 lb, Application Blowers, Compressors, Fans, Generators Numerous Industrial Applications, Including Pumps, Motors, Element Flex Material Polyether Urethane
