Product Information
MFR #
1050T178
Zoro #
G0505099
UPC #
698672166423
Country of Origin
Korea, Republic of
Dimensions
Coupling Overall Length
4.88 in
Hub Diameter
2 5/8 in
Length through Bore
2 3/8 in
Screw Thread Size
M8
Hub Body Length
2.37 in
Keyway Depth
3/16 in
Bore Diameter
1 7/8 in
Keyway Width
3/8 in
Coupling Size
1050
Outside Diameter
2.63 in
Details
Item

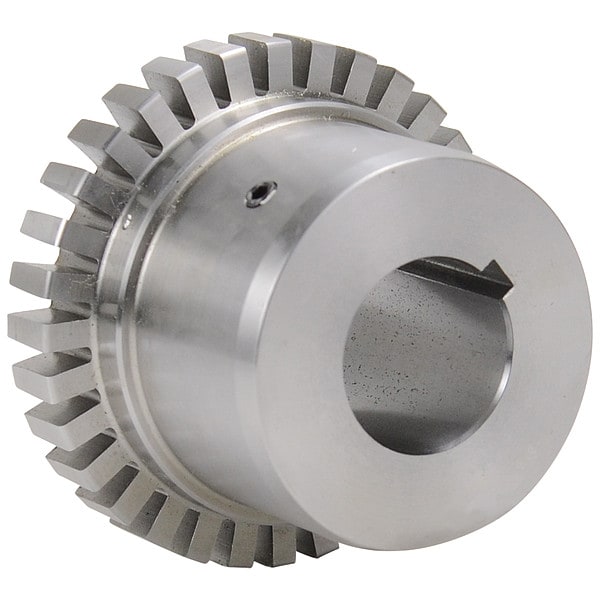

Grid Coupling Hub
Bore Type
Round with Keyway
Weight
2.4 lb
Maximum Torque
3,850 in-lb
Application
For Limited Space, General Purpose
Machinable Bore Range
1 7/8 in
Standards
AGMA
Included Screws
Set Screw
Hub Material
Steel
For Misalignment Type
Angular, Parallel
Maximum Speed
4,500 RPM
System of Measurement
Inch
Features
Design Flexibility, Horizontally Split Cover, Stop Lug in Cover Prevents Spinning During Reversing Service
Description
Grid Coupling Hub, System of Measurement Inch, Screw Thread Size M8, Outside Diameter 2.63 in, Features Design Flexibility, Horizontally Split Cover, Stop Lug in Cover Prevents Spinning During Reversing Service, Maximum Torque 3,850 in-lb, For Misalignment Type Angular, Parallel, Included Screws Set Screw, Bore Type Round with Keyway, Application For Limited Space, General Purpose, Maximum Speed 4,500 RPM, Standards AGMA, Bore Diameter 1 7/8 in, Weight 2.4 lb, Length through Bore 2 3/8 in
