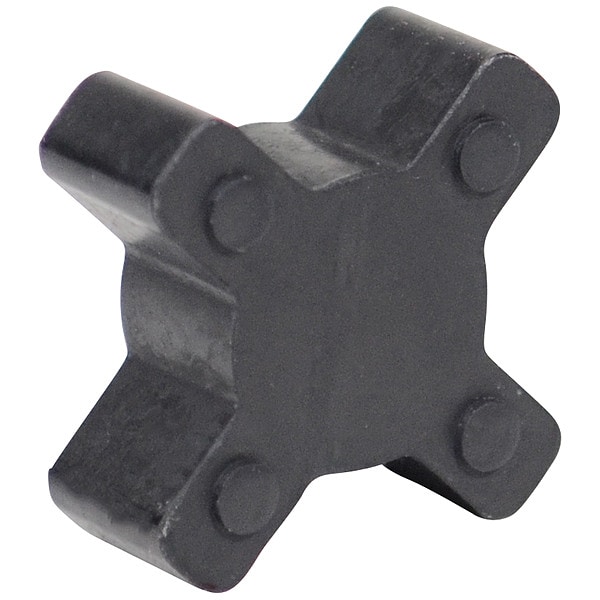

Tb Woods L-Jaw Coupling Insert, L070, Buna N L070N - main

L-Jaw Coupling Insert, L070, Buna N

  • Mfr # L070N

  • Zoro # G1264952

product price: $4.89
/ea

Key Features

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Size - Jaw Couplings
L070
Material - Spiders
Buna N
Rated Torque
43 in-lb
Max. RPM
14,000 RPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L070N
Zoro #
G1264952
UPC #
698672000048
Country of Origin
United States

Dimensions

Size - Jaw Couplings
L070
Coupling Size
L070
Width (In.)
1.36 in
Height (In.)
0.44 in
Length (In.)
1.36 in
Spider Width
0.44 in
Outside Diameter
1 23/64 in

Details

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Material - Spiders
Buna N
Rated Torque
43 in-lb
Max. RPM
14,000 RPM
HP Rating @ 100 RPM
0.07
Temp. Range
-40 Degrees to 212 Degrees F
Accommodates
1 Degrees Angular and 0.015 in of Parallel Misalignment
HP Rating @ 3600 RPM
2.5
Item
Buna N Spider Insert
Color
Black
Serviceable Temp. Range (F)
-40 to 212
Max. Torque (In.-Lbs.)
43
Type
Buna N Spider
HP Rating @ 1800 RPM
1.2
Torque (In.-Lbs.)
43
HP Rating @ 1200 RPM
0.8
HP Rating @ 300 RPM
0.2
Max. Bore (In.)
0.750
Maximum Operating Temperature
212 Degrees F
System of Measurement
Inch
Horsepower @ RPM
0.8 hp @ 1200 RPM, 1.2 hp @ 1800 RPM, 2.5 hp @ 3600 RPM
Maximum Torque
43 in-lb
Zero Backlash
No
Working Torque
43 in-lb
Spider Material
Buna-N
For Maximum Hub Bore
3/4 in
Resistance Properties
Oil Resistant
Horsepower @ 100 RPM
0.07 hp
Durometer Hardness
80A
Fail Safe
Yes
Angular Misalignment
1 Degrees
For Misalignment Type
Angular, Parallel
Maximum Speed
14,000 RPM
Spider Type
Solid Center Spider
Minimum Operating Temperature
-40 Degrees F
Number of Teeth
4
Compatible Hub Manufacturer Part Number
L070
Parallel Misalignment
0.015 in

Description

Buna N Spider Insert, Coupling Size L070, Outside Diameter 1 23/64 in, System of Measurement Inch, Maximum Speed 14,000 RPM, Horsepower @ 100 RPM 0.07 hp, Spider Material Buna-N, Maximum Torque 43 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 80A, Angular Misalignment 1 Degrees , Color Black, Compatible Hub Manufacturer Part Number L070, Fail Safe Yes, For Maximum Hub Bore 3/4 in, For Misalignment Type Angular, Parallel
