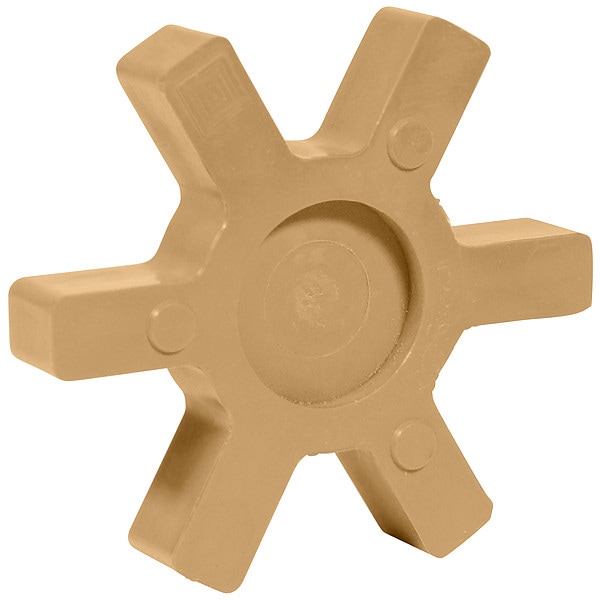

Tb Woods L-Jaw Coupling Insert, L150, Hytrel L150H - main

L-Jaw Coupling Insert, L150, Hytrel

  • Mfr # L150H

  • Zoro # G1698365

product price: $85.19
/ea
Free Shipping & Returns

Key Features

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Size - Jaw Couplings
L150
Material - Spiders
Hytrel
Rated Torque
3,708 in-lb
Max. RPM
5,000 RPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L150H
Zoro #
G1698365
UPC #
698672000185
Country of Origin
United States

Dimensions

Size - Jaw Couplings
L150
Width (In.)
3.72 in
Length (In.)
3.72 in
Height (In.)
0.88 in
Coupling Size
L150
Outside Diameter
3 23/32 in
Spider Width
0.88 in

Details

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Material - Spiders
Hytrel
Rated Torque
3,708 in-lb
Max. RPM
5,000 RPM
HP Rating @ 100 RPM
5.9
Temp. Range
-60 Degrees to 250 Degrees F
Color
White
Item
Hytrel Spider Insert
Max. Torque (In.-Lbs.)
3708
HP Rating @ 1200 RPM
71
Serviceable Temp. Range (F)
-60 to 250
Type
Hytrel Spider
HP Rating @ 1800 RPM
106
HP Rating @ 3600 RPM
212
Torque (In.-Lbs.)
3708
HP Rating @ 300 RPM
18
Accommodates
1/2 Degrees Angular and 0.015 in of Parallel Misalignment
Max. Bore (In.)
1.875
Application
Cranes, Generators, Mills
Fail Safe
Yes
Compatible Hub Manufacturer Part Number
L150
Working Torque
3,708 in-lb
Horsepower @ 100 RPM
5.9 hp
Maximum Operating Temperature
250 Degrees F
Number of Teeth
6
Spider Type
Solid Center Spider
Angular Misalignment
0.5 Degrees
Spider Material
Hytrel
Parallel Misalignment
0.015 in
Horsepower @ RPM
106 hp @ 1800 RPM, 212 hp @ 3600 RPM, 71 hp @ 1200 RPM
For Misalignment Type
Angular, Parallel
Maximum Torque
3,708 in-lb
Minimum Operating Temperature
-60 Degrees F
Maximum Speed
5,000 RPM
For Motion Type
Start and Stop
System of Measurement
Inch
For Maximum Hub Bore
1 7/8 in
Durometer Hardness
55D
Resistance Properties
Chemical Resistant, Oil Resistant
For Minimum Hub Bore
5/8 in
Zero Backlash
No

Description

Hytrel Spider Insert, Coupling Size L150, Outside Diameter 3 23/32 in, System of Measurement Inch, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 5.9 hp, Spider Material Hytrel, Maximum Torque 3,708 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 55D, Angular Misalignment 0.5 Degrees , For Minimum Hub Bore 5/8 in, Application Cranes, Generators, Mills, Color White, Compatible Hub Manufacturer Part Number L150, Fail Safe Yes, For Maximum Hub Bore 1 7/8 in
