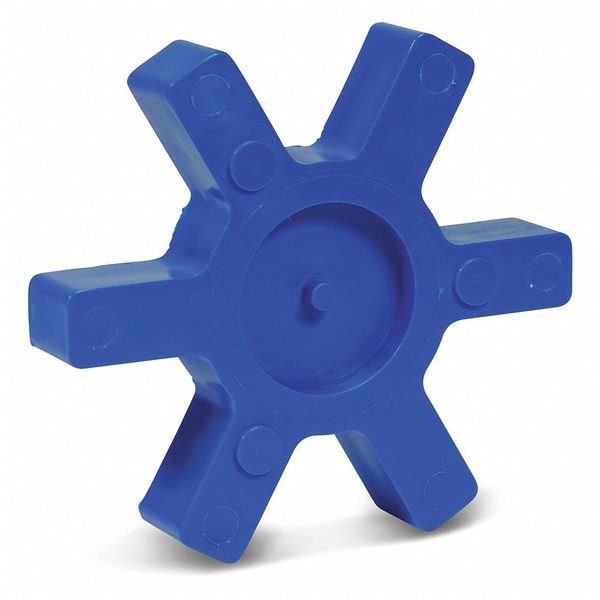

Tb Woods L-Jaw Coupling Insert, L150, Urethane L150U - main

L-Jaw Coupling Insert, L150, Urethane

  • Mfr # L150U

  • Zoro # G1055433

product price: $71.99
/ea

Key Features

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Size - Jaw Couplings
L150
Material - Spiders
Urethane
Rated Torque
1,860 in-lb
Max. RPM
5,000 RPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L150U
Zoro #
G1055433
UPC #
698672000260
Country of Origin
United States

Dimensions

Size - Jaw Couplings
L150
Height (In.)
0.88 in
Length (In.)
3.72 in
Coupling Size
L150
Width (In.)
3.72 in
Spider Width
0.88 in
Outside Diameter
3 47/64 in

Details

Item - Jaw Coupling Spiders
Jaw Coupling Insert
Material - Spiders
Urethane
Rated Torque
1,860 in-lb
Max. RPM
5,000 RPM
HP Rating @ 100 RPM
3.0
Temp. Range
-30 Degrees to 160 Degrees F
HP Rating @ 1200 RPM
36
Torque (In.-Lbs.)
1860
Type
Urethane Spider
Accommodates
1 Degrees Angular and 0.015 in of Parallel Misalignment
Serviceable Temp. Range (F)
-30 to 160
Color
Blue
HP Rating @ 1800 RPM
54
HP Rating @ 300 RPM
9.0
Max. Torque (In.-Lbs.)
1860
Max. Bore (In.)
1.875
HP Rating @ 3600 RPM
108
Item
Urethane Spider Insert
Application
Blowers, Compressors, Generators, Pumps
Resistance Properties
Chemical Resistant, Oil Resistant
Spider Material
Polyurethane
Compatible Hub Manufacturer Part Number
L150
Angular Misalignment
1 Degrees
For Misalignment Type
Angular, Parallel
Horsepower @ 100 RPM
3.0 hp
Spider Type
Solid Center Spider
Maximum Operating Temperature
160 Degrees F
System of Measurement
Inch
Working Torque
1,860 in-lb
Parallel Misalignment
0.015 in
Maximum Speed
5,000 RPM
Durometer Hardness
90A
Maximum Torque
1,860 in-lb
For Maximum Hub Bore
1 7/8 in
Minimum Operating Temperature
-30 Degrees F
Fail Safe
Yes
Number of Teeth
6
Horsepower @ RPM
107 hp @ 3600 RPM, 36 hp @ 1200 RPM, 53 hp @ 1800 RPM
Zero Backlash
No

Description

Urethane Spider Insert, Coupling Size L150, Outside Diameter 3 47/64 in, System of Measurement Inch, Maximum Speed 5,000 RPM, Horsepower @ 100 RPM 3.0 hp, Spider Material Polyurethane, Maximum Torque 1,860 in-lb, Parallel Misalignment 0.015 in, Durometer Hardness 90A, Angular Misalignment 1 Degrees , Application Blowers, Compressors, Generators, Pumps, Color Blue, Compatible Hub Manufacturer Part Number L150, Fail Safe Yes, For Maximum Hub Bore 1 7/8 in, For Misalignment Type Angular, Parallel
