  11. Sure-Flex Sleeve Coupling Spacer Flange, 5SC

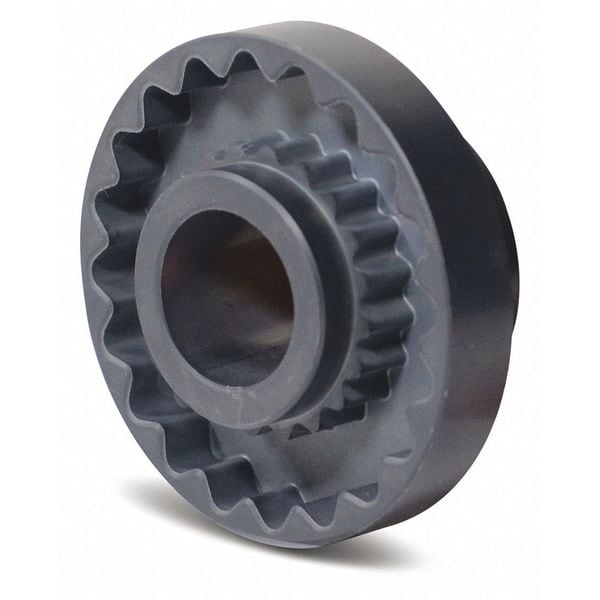

Tb Woods Sure-Flex Sleeve Coupling Spacer Flange, 5SC 5SC35 - main

Sure-Flex Sleeve Coupling Spacer Flange, 5SC

  • Mfr # 5SC35

  • Zoro # G8514003

product price: $40.15
/ea

Key Features

Item - Sleeve Coupling Flanges
Sleeve Coupling Spacer Flange
Size - Sleeve Couplings
5
Flange Type - Sleeve Couplings
SC
Outside Dia.
3.25 in
Max. RPM
7,600 RPM
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5SC35
Zoro #
G8514003
UPC #
698672670050
Country of Origin
United States

Dimensions

Size - Sleeve Couplings
5
Outside Dia.
3.25 in
Height (In.)
3.25 in
Width (In.)
1.688 in
Keyseat Size (In.)
None
Outside Dia. (In.)
3.25
Length through Bore
1 11/16 in
Coupling Size
5
Hub Diameter
2 in
Outside Diameter
3 1/4 in
Hub Body Length
51/64 in

Details

Item - Sleeve Coupling Flanges
Sleeve Coupling Spacer Flange
Flange Type - Sleeve Couplings
SC
Max. RPM
7,600 RPM
Item
Sleeve Coupling Spacer Flange
Bushing Required
None
Body Style
Type-SC Spacer Flange
Max. Angular Misalignment
0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Ideal For
Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Material of Construction
Sintered Steel
Application
Compressors, Conveyors, Motors, Pumps
Weight
1.3 lb
Maximum Speed
7,600 RPM
Hub Material
Cast Iron
Set Screw Location
Over Keyseat
Maximum Torque
312 in-lb
Included Screws
(4) Cap Screws
For Misalignment Type
Angular, Parallel
System of Measurement
Inch
Resistance Properties
Chemical Resistant, Oil Resistant
Features
4-way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration

Description

Sleeve Coupling Spacer Flange, Coupling Size 5, Maximum Speed 7,600 RPM, Maximum Torque 312 in-lb, Outside Diameter 3 1/4 in, Bore Type Not Applicable, Hub Diameter 2 in, Hub Material Cast Iron, For Bushing Size Not Applicable, Bore Diameter Not Applicable, Length through Bore 1 11/16 in, System of Measurement Inch, Hub Body Length 51/64 in, Application Compressors, Conveyors, Motors, Pumps, Bore Tolerance Not Applicable
