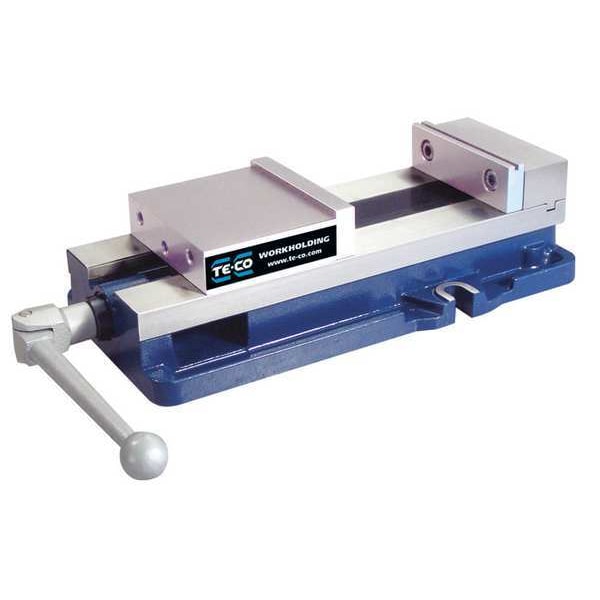

6" Machine Vise with Fixed Base
- Mfr # PWS-6900
- Zoro # G7486884
product price:Â
$
926.99
/ea
Free Shipping & Returns
Key Features
Base Type
Fixed
Jaw Width
6 in
Overall Height
4.625 in
Overall Length
19.376 in
Throat Depth
1 3/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- PWS-6900
- Zoro #
- G7486884
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- Item
- Machine Vise
- Base Type
- Fixed
- Features
- Bed Heights Matched to 2 7/8 in +/-0.0005 in, Hardened Vise Bed and Jaw Plates, Outside Rail Edges of the Body are Machined, Sealed Bearing System Reduces Clamping Pressure and Increases Bearing Life
- Base
- Fixed
- Type
- Manual Milling 6 in Single Station
- Max. Travel
- 9.00
- Jaw Opening (In.)
- 9 in
- Jaw Plate
- SQUARE TO 0.001
- Bed/Base
- 2.875
- Clamping Force (Lb.)
- 8200
- Jaw Material
- Ductile Iron
- Clamping Force - Maximum
- 8,200 lbf
- Machine Vise Type
- Single Station
- Jaw Opening - Maximum
- 9 in
- Jaw Face Type
- Smooth
- Compatible Machinery
- Milling Machine
- Lead Screw Type
- UNC
- Base Material
- Ductile Iron
Description
Machine Vise, Manual Milling 6 in Single Station, Fixed Base, Jaw Width (In.) 5 47/50 in, Jaw Opening (In.) 9 in, Throat Depth (In.) 1 3/4 in, Overall Length (In.) 17.206, Overall Height (In.) 4.625, Max. Travel 9.00, Clamping Force (Lb.) 8200, Jaw Plate SQUARE TO 0.001, Bed/Base 2.875, Bed Heights Matched to 2 7/8 in +/-0.0005 in, Hardened Vise Bed and Jaw Plates, Outside Rail Edges of the Body are Machined, Sealed Bearing System Reduces Clamping Pressure and Increases Bearing Life
