  9. Plunger, Hand, SS, 5/8-11, 3.05, PK2
Shop All Spring Plungers
Te-Co

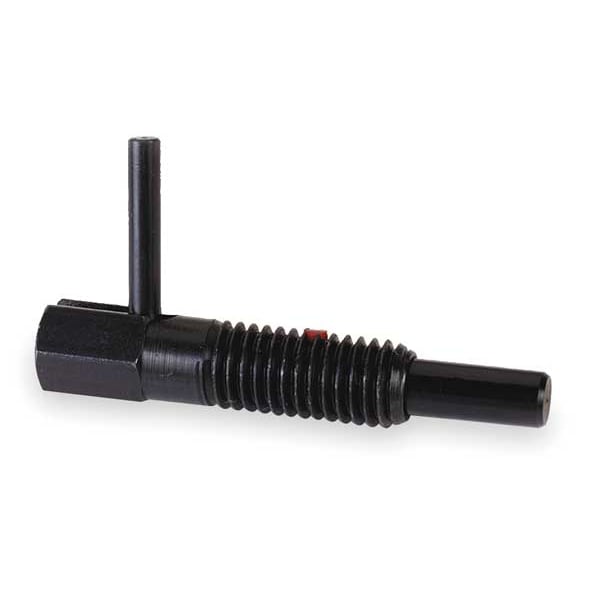

Plunger, Hand, SS, 5/8-11, 3.05, PK2

product price: $56.19
/pk 2, $28.10/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Thread Size 5/8"-11
  • Force 1.00 Initial, 5.00 Final
  • Body Length (In.) 3.05
  • Material 303 Stainless Steel
  • Plunger 303 Stainless Steel
See all product information

Product Information

Dimensions

Thread Size 5/8"-11
Body Length (In.) 3.05
Plunger Dia. (In.) 0.380
Body Width (In.) 0.620
Body Dia. 5/8 in
Plunger Dia. 0.3800 in
Overall Length 3.0500 in
Thread Length 1.8200 in
Plunger Width 0.6200 in
Body Length 2 in

Details

Item Spring Plunger
Force 1.00 Initial, 5.00 Final
Material 303 Stainless Steel
Plunger 303 Stainless Steel
Type Hand Retractable
Function Plunger Can Be Completely Withdrawn Into Body And Locked Into Retracted Position
Plunger Travel (In.) 1.000
Spring Stainless Steel
End Force Final (Lb.) 5.00
End Force Initial (Lb.) 1.00
With Locking Plunger Yes
Thread-Locking Element Included Yes
Plunger Material Stainless Steel
Body Material Stainless Steel
Initial Nose Force 1 lb
Final Nose Force 5 lb
Retractable Yes
Thread Partially Threaded
Plunger Projection 1 in
Handle Type Lever
Nose Shape Chamfered

Description

Spring Plunger, Thread Size 5/8 In.-11, Thread Length 1.8200 in, Nose Shape Chamfered, Plunger Material Stainless Steel, Plunger Dia. 0.3800 in, Plunger Projection 1 in, Mounting Type Threaded, With Locking Plunger Yes, Body Length 2 in, Final Nose Force 5 lb, Initial Nose Force 1 lb, Overall Length 3.0500 in, Plunger Width 0.6200 in, Handle Type Lever, Body Material Stainless Steel, Retractable Yes, Thread Partially Threaded, Package Quantity 2
