Shop TE CONNECTIVITY

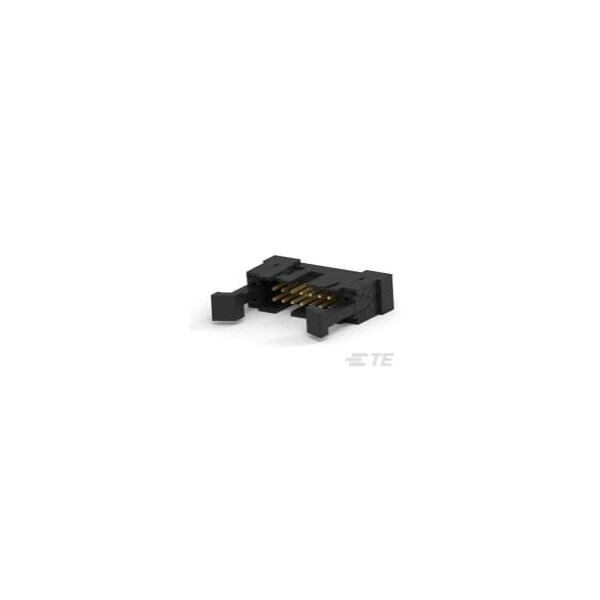

014 UNIV I/O 30DP NO EARS LTCH

  • Mfr # 1-111504-5

  • Zoro # G201040437

product price:
$
18.69
/ea
Sold in multiples of 5 for $93.45

Key Features

Min. Single Wire Size
28 AWG
Max. Voltage
250V AC
Max. Temp.
105°C
Application
Signal
Standards
CSA Certified; UL E28476; UL Recognized
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-111504-5
Zoro #
G201040437
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.3299 in
Height
27.81 mm
Length
1.272 in
Max. Insulation Dia.
0.0381 in
Contact Plating Thickness
0.76 µm
Max. Single Wire Size
26 AWG

Details

Item
Connector
Max. Voltage
250V AC
Max. Temp.
105°C
Application
Signal
Standards
CSA Certified; UL E28476; UL Recognized
Material
Thermoplastic
Features
With Ejection Latches; Shrouded
Color
Black
Connector Type
Plug
Number of Rows
2
Hole Center to Center
2.54 mm
Flammability Rating
UL 94 V-0
Contact Finish
Matte
Contact Type
Pin
Terminal Type
Insulation Displacement Crimp
Wire Type
Solid or Stranded
Number of Contacts
14
Connection Material
Phosphor Bronze
Connector Terminates To
Wire & Cable
Current Rating
1 A
Terminal Finish
Tin Plated
