Shop TE CONNECTIVITY

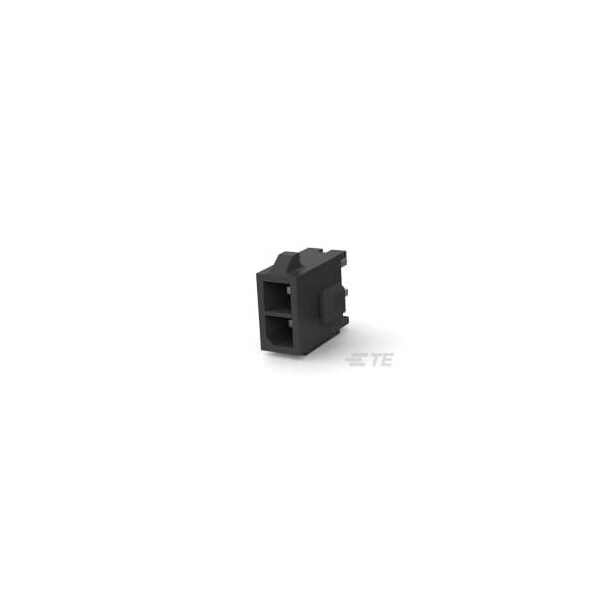

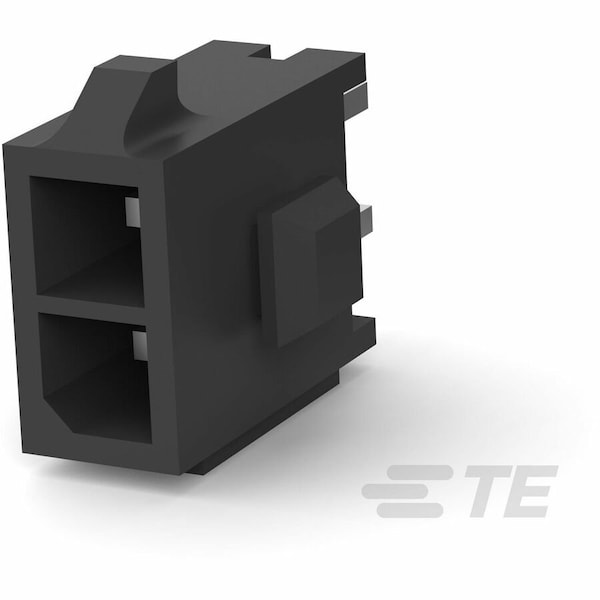

02P MICRO MNL ASSY VRT HDR LF

  • Mfr # 3-794630-2

  • Zoro # G300940522

product price:  $0.74
/ea
Sold in multiples of 111 for $82.14

Key Features

Type
Header
Color
Black
Insulation Material
Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3-794630-2
Zoro #
G300940522
UPC #
-
Country of Origin
China

Dimensions

Width
8.67 mm
Height
9.24 mm
Length
3.86 mm
Contact Plating Thickness
2.54 to 7.62 µm

Details

Item
Header
Type
Header
Color
Black
Insulation Material
Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Power
Current
5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Hole Center to Center
3 mm
Max. Temp.
105°C
Material
Nylon
Terminal Type
Through Hole - Solder
Number of Contacts
2
Contact Type
Pin
Contact Finish
Tin Plated
Number of Rows
2
Current Rating
5 A
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Termination Style
Through Hole - Solder
