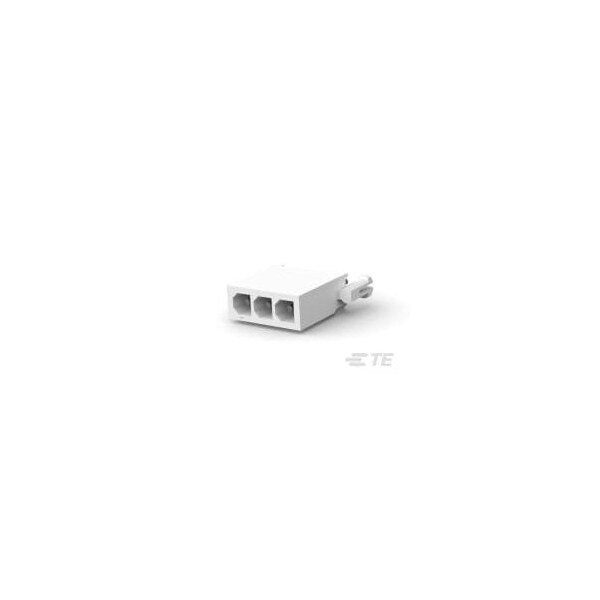

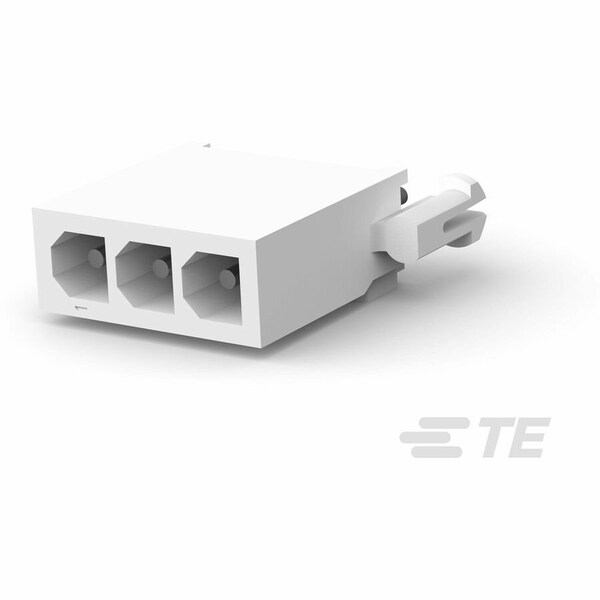

03P MINI-UMNL ASSY VO SNNI
Mfr # 1-770170-0
Zoro # G301040726
product price:Â
$
1.25
/ea
Sold in multiples of 75 for $93.75
Key Features
Max. Voltage
600V AC/DC
Max. Temp.
105°C
Application
Power
Standards
CSA Certified; UL E28476; UL Recognized
Width
13.49 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1-770170-0
- Zoro #
- G301040726
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Width
- 13.49 mm
- Height
- 6.35 mm
- Length
- 17.83 mm
- Contact Plating Thickness
- 3.81 to 8.89 µm
- Max. Insulation Dia.
- 0.126 in
Details
- Item
- Header
- Max. Voltage
- 600V AC/DC
- Max. Temp.
- 105°C
- Application
- Power
- Standards
- CSA Certified; UL E28476; UL Recognized
- Color
- White
- Material
- Nylon
- For Use With
- Plug Housing
- Contact Finish
- Tin Plated
- Flammability Rating
- UL 94 V-0
- Connector Terminates To
- Printed Circuit Board
- Current Rating
- 9.5 A
- Number of Contacts
- 3
- Terminal Type
- Through Hole - Solder
- Hole Center to Center
- 4.14 mm
- Contact Type
- Pin
- Number of Rows
- 1
- Terminal Finish
- Tin Plated
