Shop TE CONNECTIVITY

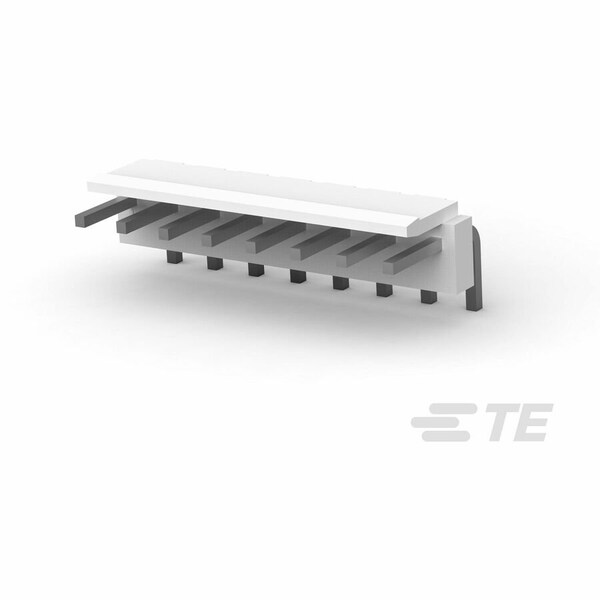

08P EC PWR.200 CL HDR ASSY RA

  • Mfr # 1744048-8

  • Zoro # G900938585

product price:
$
0.50
/ea
Sold in multiples of 122 for $61.00

Key Features

Color
Natural
Insulation Material
Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Power
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1744048-8
Zoro #
G900938585
UPC #
-
Country of Origin
China

Dimensions

Width
0.5905 in
Height
8.2 mm
Length
38.16 mm
Contact Plating Thickness
2.03 µm

Details

Item
Header
Color
Natural
Insulation Material
Nylon
Max. Voltage
250V AC/DC
Maximum Voltage
250 V AC/DC
Application
Power
Current
8 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Through Hole - Solder
Material
Nylon
Max. Temp.
105°C
Hole Center to Center
5.08 mm
Features
Unshrouded
Connection Material
Copper Alloy
For Use With
Receptacle Assembly
Number of Rows
1
Contact Finish
Tin Plated
Contact Type
Tab
Number of Contacts
8
Current Rating
8 A
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
