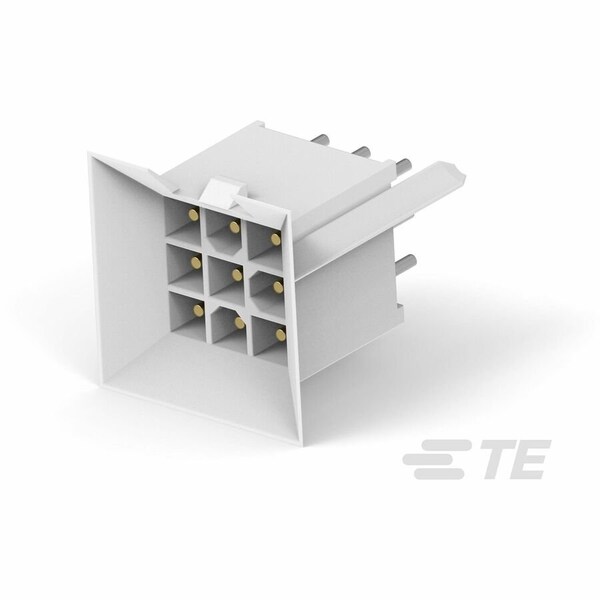

09P MINI UMNL HDR ASSY BLMT LF
- Mfr # 1-794130-1
- Zoro # G100937654
product price:Â
$
7.19
/ea
Sold in multiples of 200 for
$1,438.00
Key Features
Color
White
Insulation Material
Thermoplastic
Max. Voltage
600V AC, 600V DC
Maximum Voltage
600 V AC/DC
Application
Power
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1-794130-1
- Zoro #
- G100937654
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Contact Plating Thickness
- 3.81 to 5.08 µm
Details
- Item
- Header
- Color
- White
- Insulation Material
- Thermoplastic
- Max. Voltage
- 600V AC, 600V DC
- Maximum Voltage
- 600 V AC/DC
- Application
- Power
- Current
- 9.5 A
- Standards
- CSA Certified; UL E28476; UL Recognized
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Terminal Type
- Through Hole - Solder
- Hole Center to Center
- 4.14 mm
- For Use With
- Plug Housing
- Material
- Thermoplastic
- Max. Temp.
- 105°C
- Contact Finish
- Tin Plated
- Number of Contacts
- 9
- Number of Rows
- 3
- Current Rating
- 9.5 A
- Contact Type
- Pin
- Flammability Rating
- UL 94 V-0
- Connector Terminates To
- Printed Circuit Board
- Terminal Finish
- Tin Plated
