This item is Discontinued.

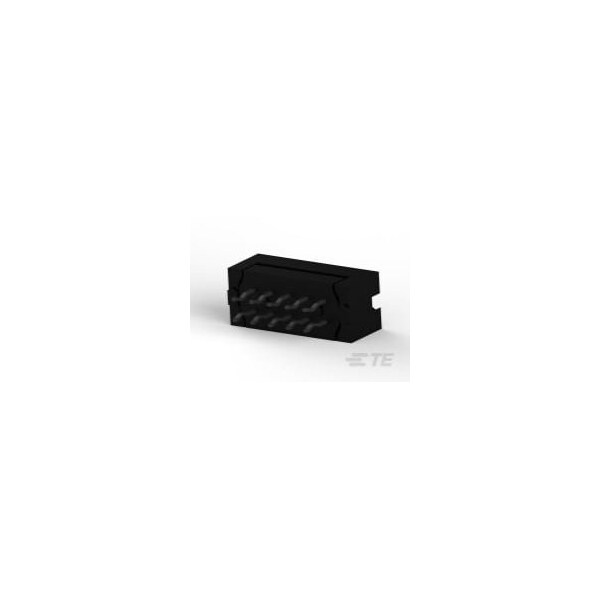

Te Connectivity 10 DIP PLUG LEAD FREE 1-111382-4

10 DIP PLUG LEAD FREE (Discontinued)

  • Mfr # 1-111382-4
  • Zoro # G600945173
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-111382-4
Zoro #
G600945173
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
30 AWG
Width
0.278 in
Height
6.43 mm
Max. Single Wire Size
26 AWG
Length
17.27 mm
Max. Insulation Dia.
1.07 mm
Contact Plating Thickness
2.54 µm
Maximum Single Wire Size
26 AWG
Minimum Single Wire Size
30 AWG

Details

Item
Connector
Color
Black
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
1 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Wire Type
Solid or Stranded
Features
With Board Standoff; Shrouded
Connector Type
Plug
Connection Material
Phosphor Bronze
Max. Temp.
105°C
Terminal Type
Through Hole - Solder; Insulation Displacement Crimp
Hole Center to Center
2.54 mm
Contact Finish
Matte
Contact Type
Pin
Current Rating
1 A
Number of Rows
2
Number of Contacts
10
Terminal Finish
Tin Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
