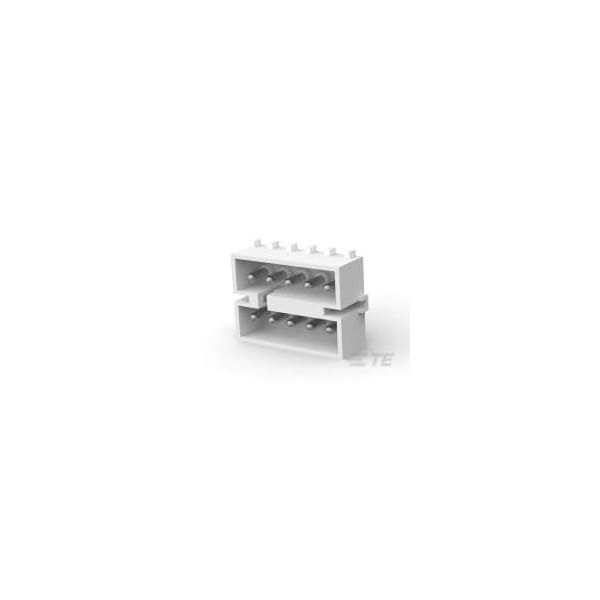

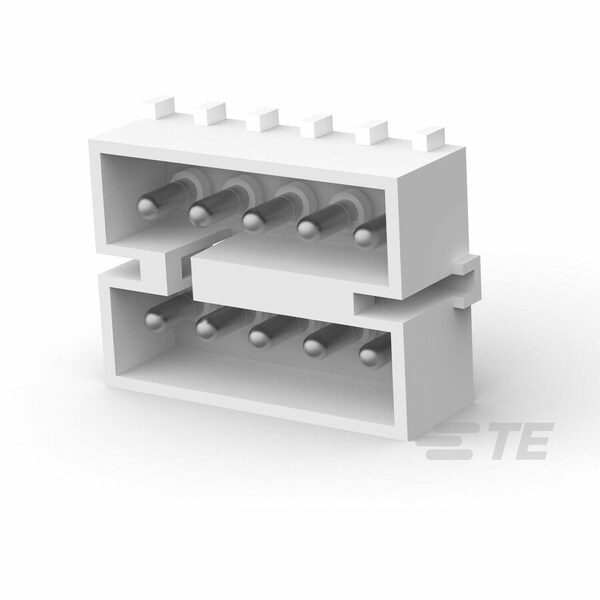

10P CMNL HDR ASSY NATL
Mfr # 1-380991-0
Zoro # G900937502
product price:Â
$
2.75
/ea
Sold in multiples of 30 for $82.50
Key Features
Color
Natural
Insulation Material
Nylon
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Power
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1-380991-0
- Zoro #
- G900937502
- UPC #
- -
- Country of Origin
- China
Dimensions
- Contact Plating Thickness
- 3.81 to 5.08 µm
Details
- Item
- Header
- Color
- Natural
- Insulation Material
- Nylon
- Max. Voltage
- 250V AC
- Maximum Voltage
- 250 V AC
- Application
- Power
- Standards
- UL E28476; CSA Certified; UL Certified and Recognized
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-2
- Terminal Type
- Through Hole - Solder
- Material
- Nylon
- Max. Temp.
- 105°C
- For Use With
- Socket (Plug) Housing
- Hole Center to Center
- 4.95 mm
- Number of Contacts
- 10
- Number of Rows
- 2
- Contact Type
- Pin
- Contact Finish
- Pre-Tin Plated
- Connector Terminates To
- Printed Circuit Board
- Flammability Rating
- UL 94 V-2
- Terminal Finish
- Pre-Tin Plated
