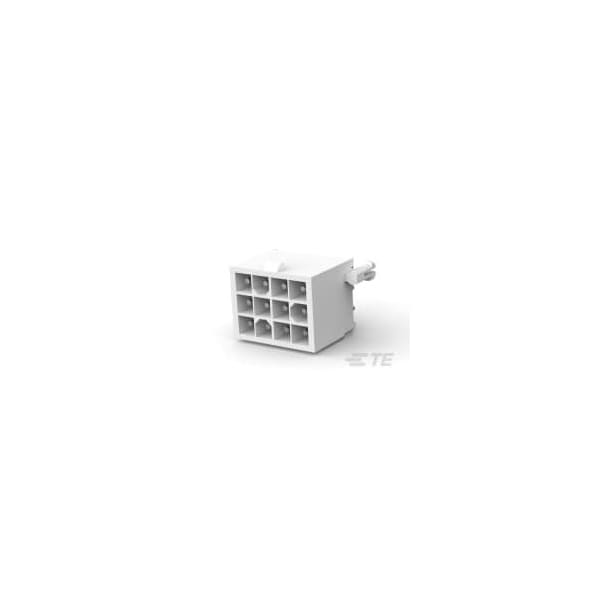

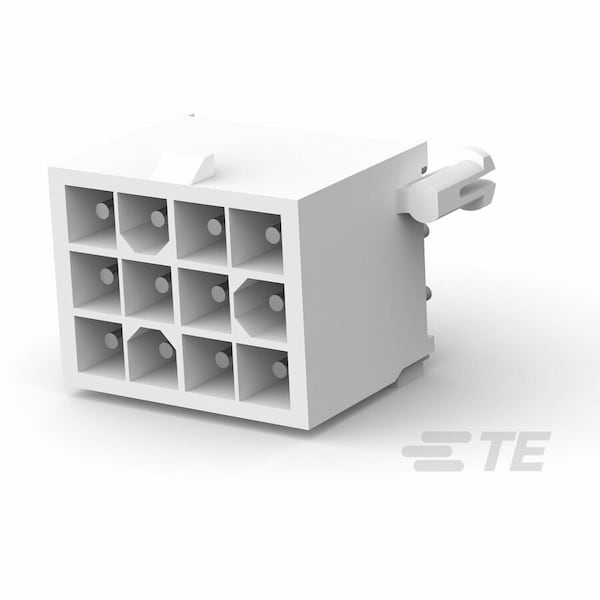

12P MINI UMNL HDR ASSY SN LF

  • Mfr # 1-794040-0
  • Zoro # G200937424
product price:
$
2.69
/ea
Sold in multiples of 1200 for $3,228.00

Key Features

Color
White
Insulation Material
Nylon
Max. Voltage
600V AC, 600V DC
Maximum Voltage
600 V AC/DC
Application
Power
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1-794040-0
Zoro #
G200937424
UPC #
-
Country of Origin
United States
Item
Header
Color
White
Insulation Material
Nylon
Max. Voltage
600V AC, 600V DC
Maximum Voltage
600 V AC/DC
Application
Power
Current
9.5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
For Use With
Plug Housing
Material
Nylon
Max. Temp.
105°C
Terminal Type
Through Hole - Solder
Hole Center to Center
4.14 mm
Features
Shrouded
Number of Rows
3
Contact Finish
Tin Plated
Number of Contacts
12
Contact Type
Pin
Current Rating
9.5 A
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0

Dimensions

Width
13.97 mm
Height
13.49 mm
Length
18.11 mm
Contact Plating Thickness
150 µm
