Shop TE CONNECTIVITY

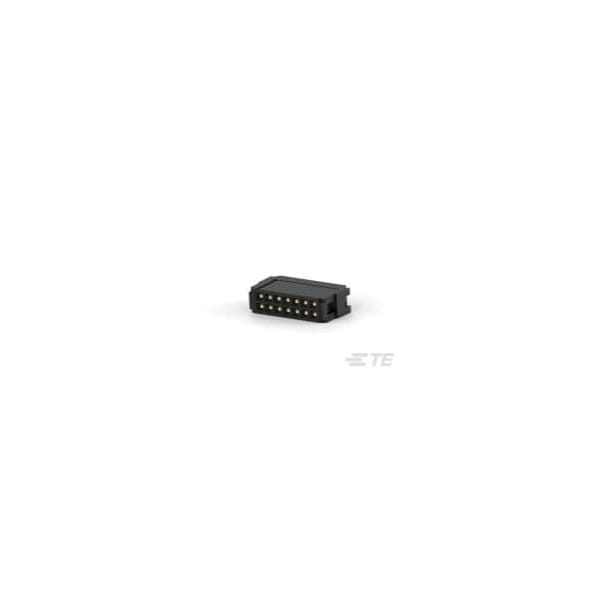

14 NOVO MIL 15DP LEAD FREE

  • Mfr # 1658620-2

  • Zoro # G301040931

product price:
$
1.59
/ea
Sold in multiples of 120 for $190.80

Key Features

Number of Rows
2
Application
Signal
Standards
CSA Certified; UL E28476; UL Recognized
Height
15.16 mm
Width
0.2402 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1658620-2
Zoro #
G301040931
UPC #
-
Country of Origin
China

Dimensions

Height
15.16 mm
Width
0.2402 in
Length
22.35 mm
Min. Single Wire Size
28 AWG
Max. Single Wire Size
26 AWG
Contact Plating Thickness
0.38 µm
Max. Insulation Dia.
0.94 mm

Details

Item
Connector
Number of Rows
2
Application
Signal
Standards
CSA Certified; UL E28476; UL Recognized
Material
Thermoplastic
Color
Black
Number of Contacts
14
Terminal Type
Through Hole - Solder; Insulation Displacement Crimp
Max. Temp.
105°C
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
Connector Terminates To
Wire & Cable
Contact Type
Socket
Current Rating
1 A
Connection Material
Phosphor Bronze
Max. Voltage
250V AC
Connector Type
Receptacle
Hole Center to Center
2.54 mm
