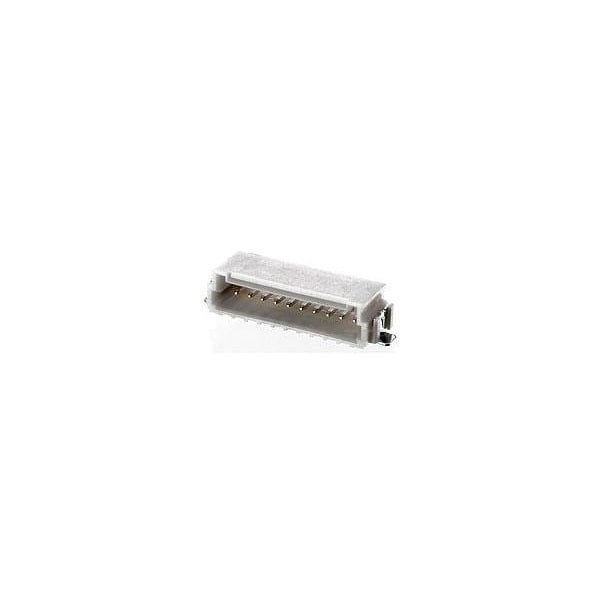

1.5 MINI CT SGL H SMT W/O BOSS

  • Mfr # 5-292228-3
  • Zoro # G401043344
product price:
$
0.55
/ea
Sold in multiples of 700 for $385.00

Key Features

Length
0.354 in
Min. Single Wire Size
28 AWG
Max. Voltage
50V AC, 50V DC
Max. Temp.
105°C
Standards
UL 94V-0; CSA Certified; UL E28476
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5-292228-3
Zoro #
G401043344
UPC #
-
Country of Origin
China

Dimensions

Length
0.354 in
Min. Single Wire Size
28 AWG
Width
0.192 in
Height
7.7 mm
Contact Plating Thickness
1 µm
Max. Single Wire Size
24 AWG
Max. Insulation Dia.
0.041 in

Details

Item
PCB Mount Header
Max. Voltage
50V AC, 50V DC
Max. Temp.
105°C
Standards
UL 94V-0; CSA Certified; UL E28476
Material
Nylon
Features
Shrouded
Color
Black
Flammability Rating
UL 94 V-0
Contact Finish
Tin Plated
Wire Type
Discrete
Number of Contacts
3
Contact Type
Pin
Connector Terminates To
Printed Circuit Board
Number of Rows
1
Terminal Finish
Tin Plated
Terminal Type
Surface Mount
Connection Material
Brass
Current Rating
2 A
Hole Center to Center
1.5 mm
