This item is Discontinued.

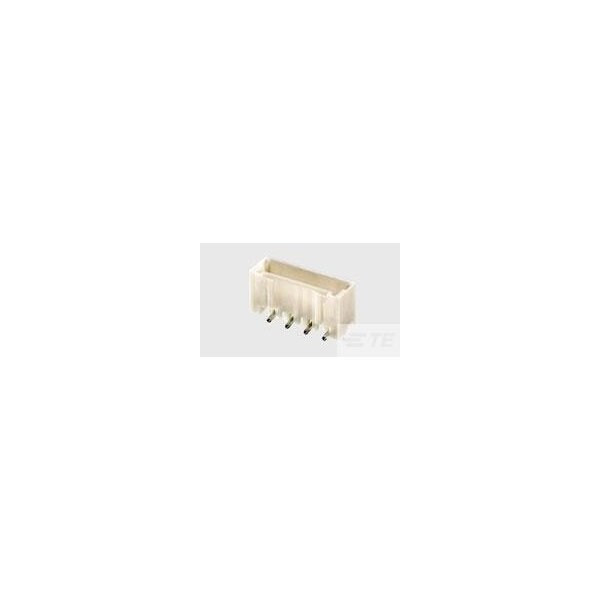

Te Connectivity 1.5 MINI CT SGL V SMT W/BOSS 1 1-292230-5

1.5 MINI CT SGL V SMT W/BOSS 1 (Discontinued)

  • Mfr # 1-292230-5
  • Zoro # G800973457
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1-292230-5
Zoro #
G800973457
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
28 AWG
Width
0.185 in
Height
0.272 in
Length
25 mm
Max. Insulation Dia.
0.041 in
Max. Single Wire Size
24 AWG
Contact Plating Thickness
1 µm
Minimum Single Wire Size
28 AWG
Maximum Single Wire Size
24 AWG

Details

Item
Connector
Color
Natural
Insulation Material
Nylon
Max. Voltage
50V AC/DC
Maximum Voltage
50 V AC/DC
Current
2 A
Standards
CSA Certified; UL E28476
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Hole Center to Center
1.5 mm
Material
Nylon
Features
Shrouded
Terminal Type
Surface Mount
For Use With
Receptacle Connector
Wire Type
Discrete
Connector Type
Header
Max. Temp.
105°C
Connection Material
Brass
Current Rating
2 A
Number of Rows
1
Contact Type
Pin
Number of Contacts
15
Contact Finish
Tin Plated
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
