Shop TE CONNECTIVITY

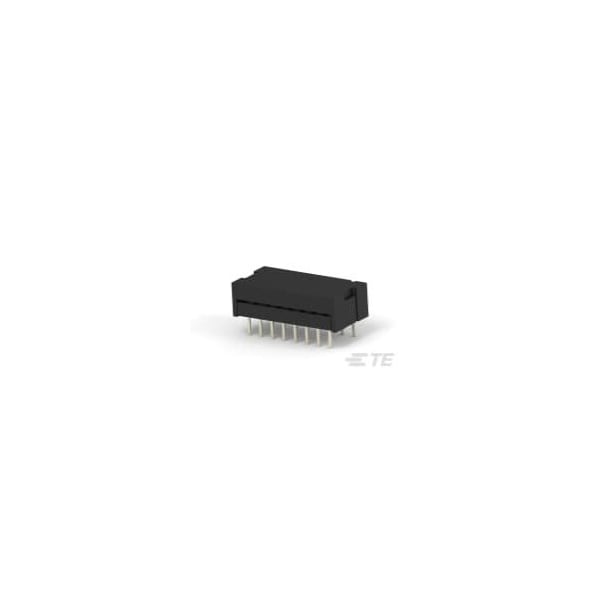

16 DIP PLUG 300CL LEAD FREE

  • Mfr # 746611-6

  • Zoro # G800947014

product price:  $4.99
/ea
Sold in multiples of 17 for $84.83

Key Features

Type
Plug
Color
Black
Min. Single Wire Size
30 AWG
Insulation Material
Thermoplastic
Max. Voltage
250V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
746611-6
Zoro #
G800947014
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
30 AWG
Width
0.42 in
Height
6.43 mm
Max. Single Wire Size
26 AWG
Max. Insulation Dia.
1.07 mm
Length
22.56 mm
Contact Plating Thickness
0.76 µm
For Minimum Wire Size - Solid
30 AWG
Maximum Single Wire Size
26 AWG
Minimum Single Wire Size
30 AWG

Details

Item
Connector
Type
Plug
Color
Black
Insulation Material
Thermoplastic
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
1 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Hole Center to Center
2.54 mm
Max. Temp.
105°C
Wire Type
Solid or Stranded
Connector Type
Plug
Terminal Type
Through Hole - Solder; Insulation Displacement Crimp
Material
Thermoplastic
Connection Material
Phosphor Bronze
Contact Type
Pin
Number of Rows
2
Current Rating
1 A
Number of Contacts
16
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
Termination Style
Through Hole - Solder; Insulation Displacement Crimp
