  11. 16P VAL-U-LOK R/A HDR GW

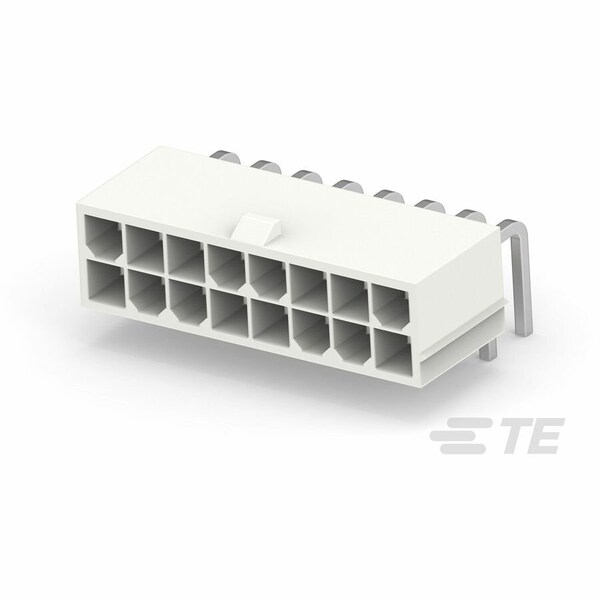

Te Connectivity 16P VAL-U-LOK R/A HDR GW 1-1586863-6 - main

16P VAL-U-LOK R/A HDR GW

  • Mfr # 1-1586863-6

  • Zoro # G200937059

product price: $1.69
/ea
Sold in multiples of 43 for $72.67

Key Features

Wire Connector Style
Rectangular
Type
Header
Color
White
Min. Single Wire Size
26 AWG
Insulation Material
Polyamide
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1-1586863-6
Zoro #
G200937059
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Min. Single Wire Size
26 AWG
Width
0.5118 in
Height
9.8 mm
Max. Insulation Dia.
3.1 mm
Max. Single Wire Size
18 AWG
Length
34.8 mm
Minimum Single Wire Size
26 AWG
Maximum Single Wire Size
18 AWG

Details

Item
Connector
Wire Connector Style
Rectangular
Type
Header
Color
White
Insulation Material
Polyamide
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
9 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
Terminal Type
Through Hole - Solder
Features
Circuit Identification Feature; Shrouded
Connector Type
Header
Green Environmental Attribute
Halogen Free
Hole Center to Center
4.19 mm
Max. Temp.
105°C
Material
Polyamide
Contact Finish
Tin Plated
Current Rating
9 A
Number of Rows
2
Contact Type
Pin
Number of Contacts
16
Terminal Finish
Brass Plated
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-2
