Shop TE CONNECTIVITY

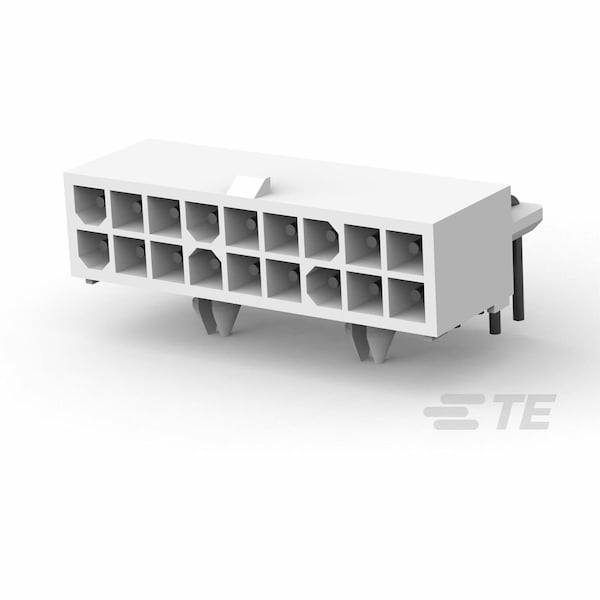

18P MINI UMNL R/A HDR ASSY SN

  • Mfr # 1-794105-0

  • Zoro # G200937677

product price:  $5.79
/ea
Sold in multiples of 35 for $202.65

Key Features

Color
White
Insulation Material
Nylon
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Application
Power
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-794105-0
Zoro #
G200937677
UPC #
-
Country of Origin
Mexico

Dimensions

Contact Plating Thickness
3.81 to 8.89 µm

Details

Item
Header
Color
White
Insulation Material
Nylon
Max. Voltage
600V AC/DC
Maximum Voltage
600 V AC/DC
Application
Power
Current
9.5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
85 Degrees C
UL 94 Flammability Rating
V-0
Terminal Type
Through Hole - Solder
Material
Nylon
Max. Temp.
85°C
Hole Center to Center
4.14 mm
For Use With
Plug Housing
Contact Finish
Tin Plated
Number of Rows
2
Contact Type
Pin
Number of Contacts
18
Current Rating
9.5 A
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated

Documents & Resources
