Shop TE CONNECTIVITY

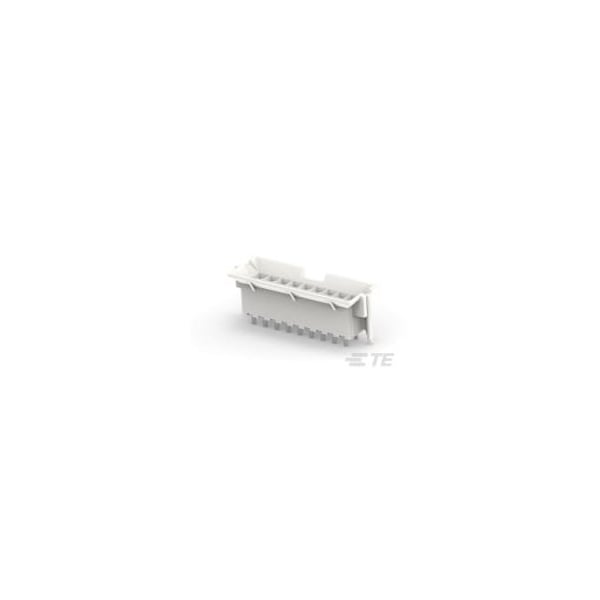

18P VAL-U-LOK BMI VRT HDR V2

  • Mfr # 1-1586586-8

  • Zoro # G000938942

product price:  $0.86
/ea
Sold in multiples of 160 for $137.60

Key Features

Type
Header
Wire Connector Style
Rectangular
Color
Natural
Min. Single Wire Size
26 AWG
Insulation Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1586586-8
Zoro #
G000938942
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
26 AWG
Width
0.5905 in
Height
14.1 mm
Max. Single Wire Size
18 AWG
Max. Insulation Dia.
3.1 mm
Length
44.4 mm
Minimum Single Wire Size
26 AWG
Maximum Single Wire Size
18 AWG

Details

Item
Connector
Type
Header
Wire Connector Style
Rectangular
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
9 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
Material
Nylon
Green Environmental Attribute
Halogen Free
Features
Circuit Identification Feature; Shrouded
Terminal Type
Through Hole - Solder
Max. Temp.
105°C
Connector Type
Header
Hole Center to Center
4.19 mm
Number of Contacts
18
Contact Finish
Tin Plated
Current Rating
9 A
Number of Rows
2
Contact Type
Pin
Flammability Rating
UL 94 V-2
Terminal Finish
Brass Plated
Connector Terminates To
Printed Circuit Board
