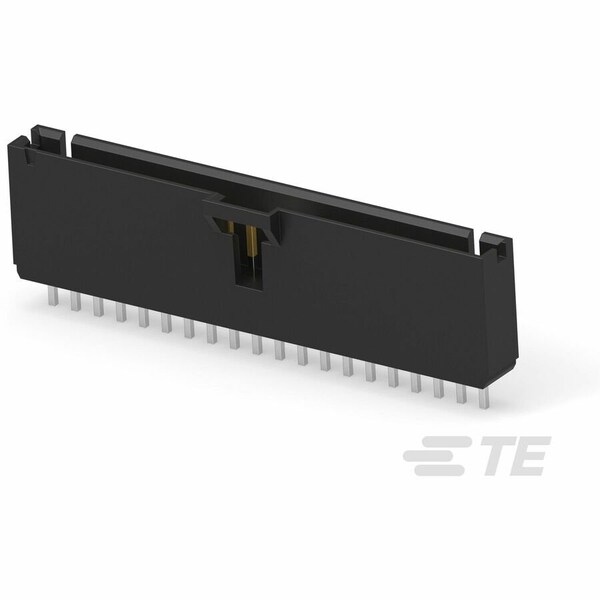

20 MTE HDR SRST LATCH W/HLDWN
- Mfr # 6-104909-9
- Zoro # G900940335
product price:Â
$
3.19
/ea
Sold in multiples of 30 for $95.70
Key Features
Color
Black
Insulation Material
Thermoplastic
Standards
CSA LR7189; UL E28476
Height
13.59 mm
Maximum Operating Temperature
105 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 6-104909-9
- Zoro #
- G900940335
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Height
- 13.59 mm
- Contact Plating Thickness
- 15 µin
Details
- Item
- PCB Mount Header
- Color
- Black
- Insulation Material
- Thermoplastic
- Standards
- CSA LR7189; UL E28476
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Features
- Shrouded
- Connection Material
- Brass
- Material
- Thermoplastic
- Terminal Type
- Insulation Displacement Crimp
- Hole Center to Center
- 2.54 mm
- Max. Temp.
- 105°C
- For Use With
- Receptacle Housing Assembly
- Current Rating
- 3 A
- Number of Contacts
- 20
- Contact Finish
- Gold Plated
- Contact Type
- Pin
- Number of Rows
- 1
- Flammability Rating
- UL 94 V-0
- Connector Terminates To
- Printed Circuit Board
- Terminal Finish
- Matte Tin Plated
