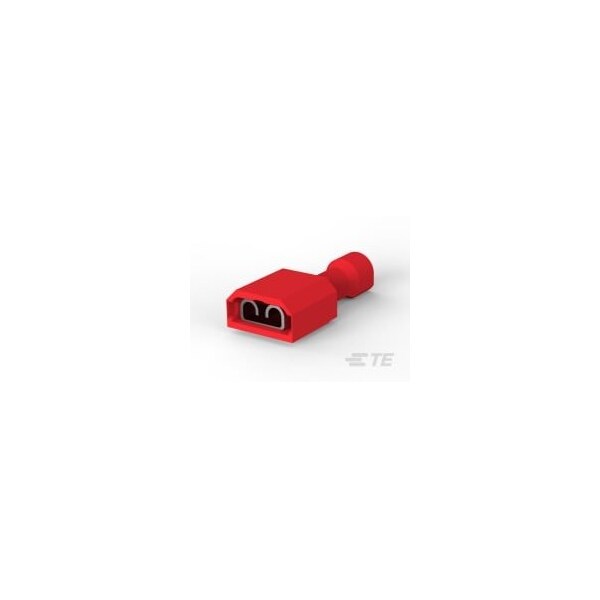

205 ULTRA-FAST RCPT 22-18 TPBR
Mfr # 2-521406-2
Zoro # G600979864
product price:Â
$
0.29
/ea
Sold in multiples of 2200 for $638.00
Key Features
Insulation Color
Red
Insulation Type
Fully Insulated
Connection Type
F-Crimp
Wire Range
0.32 to 0.82 mm²
Overall Length
0.855 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2-521406-2
- Zoro #
- G600979864
- UPC #
- -
- Country of Origin
- United States
- Insulation Color
- Red
- Insulation Type
- Fully Insulated
- Connection Type
- F-Crimp
- Wire Range
- 0.32 to 0.82 mm²
- Seam
- Closed
- Max. Temp.
- 221 Degrees F
- Max. Voltage
- 600V
- Terminal Type
- Quick Connect Receptacle
- Standards
- UL Rating
- Wire Type
- Stranded, Discrete Wire
- Features
- Wire Insulation Support
- Connection Material
- Brass
- Application
- Wire & Cable
- Contact Plating Material
- Tin
- Insulation Dia
- 0.135 in
- Terminal Orientation
- Straight
