Shop TE CONNECTIVITY

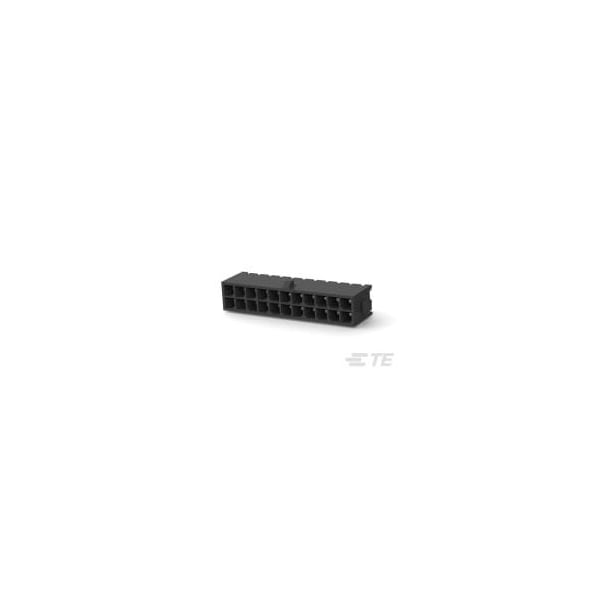

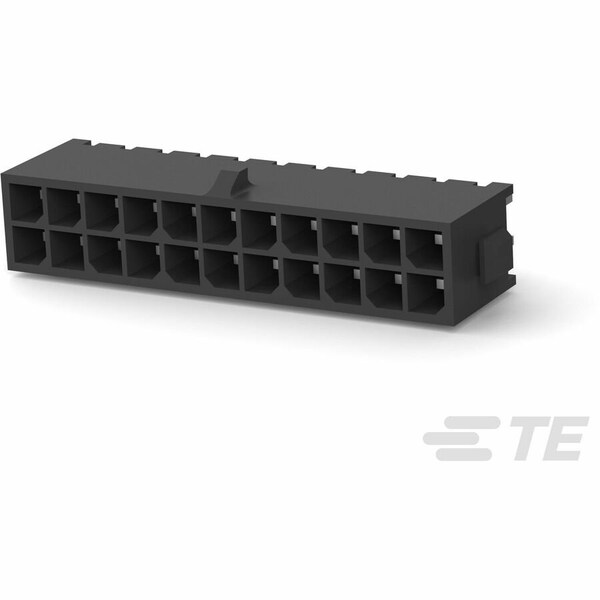

22P MICRO MNL ASSY VRT HDR LF

  • Mfr # 5-794630-2
  • Zoro # G600940345
product price:
$
2.75
/ea
Sold in multiples of 34 for $93.50

Key Features

Type
Pin
Color
Black
Insulation Material
Nylon
Max. Voltage
250V AC, 250V DC
Maximum Voltage
250 V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5-794630-2
Zoro #
G600940345
UPC #
-
Country of Origin
China

Dimensions

Width
9.24 mm
Height
8.67 mm
Max. Insulation Dia.
1.52 mm
Length
37 mm
Contact Plating Thickness
2.54 to 7.62 µm

Details

Item
Header
Type
Pin
Color
Black
Insulation Material
Nylon
Max. Voltage
250V AC, 250V DC
Maximum Voltage
250 V AC/DC
Application
Power
Current
5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
Nylon
For Use With
Plug Housing
Terminal Type
Through Hole - Solder
Hole Center to Center
3 mm
Max. Temp.
105°C
Contact Type
Pin
Number of Contacts
22
Contact Finish
Tin Plated
Current Rating
5 A
Number of Rows
2
Flammability Rating
UL 94 V-0
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Termination Style
Through Hole - Solder
