Shop TE CONNECTIVITY

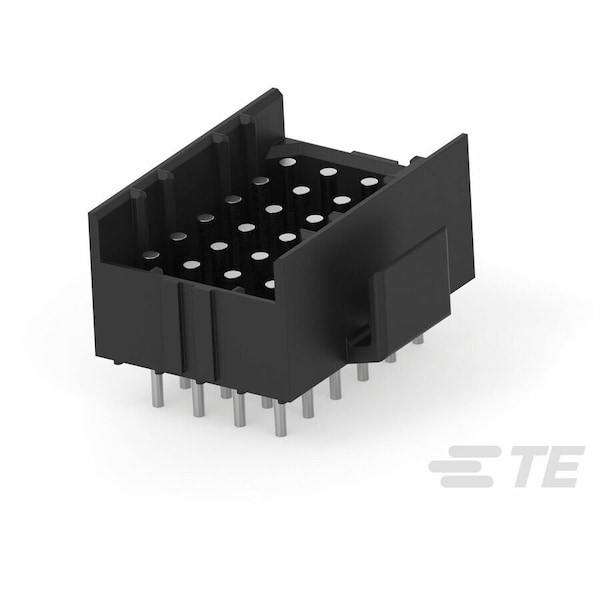

24P MR HDR ASSY V0 RED

  • Mfr # 640505-3

  • Zoro # G800940510

product price:  $12.39
/ea
Sold in multiples of 7 for $86.73

Key Features

Color
Red
Min. Single Wire Size
26 AWG
Insulation Material
Nylon
Max. Voltage
250V AC
Maximum Voltage
250 V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
640505-3
Zoro #
G800940510
UPC #
-
Country of Origin
Mexico

Dimensions

Min. Single Wire Size
26 AWG
Width
0.785 in
Height
13.46 mm
Length
1.115 in
Max. Single Wire Size
18 AWG
Max. Insulation Dia.
0.115 in
Minimum Single Wire Size
26 AWG
Maximum Single Wire Size
18 AWG

Details

Item
Header
Color
Red
Insulation Material
Nylon
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Power, Signal
Current
9 A
Standards
CSA Certified; UL E28476; UL Recognized
UL 94 Flammability Rating
V-0
For Use With
Printed Circuit Board
Hole Center to Center
4.2 mm
Terminal Type
Through Hole - Solder
Material
Nylon
Features
Shrouded
Contact Type
Pin
Number of Rows
6
Current Rating
9 A
Number of Contacts
24
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Pre-Tin Plated
