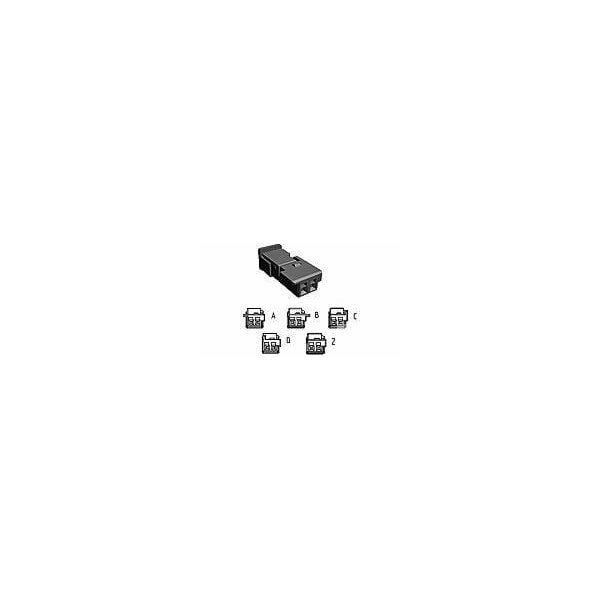

2POS MQS REC COD C
Mfr # 3-1718333-1
Zoro # G601033657
product price: $0.40
/eaSold in multiples of 450 for $180.00
Key Features
Color
Blue
Width
16.7 mm [ .657 in ]
Number of Positions
2
Height
6.2 mm [ .244 in ]
Length
7 mm [ .276 in ]
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
3-1718333-1
Zoro #
G601033657
UPC #
-
Country of Origin
Italy
Dimensions
Width
16.7 mm [ .657 in ]
Height
6.2 mm [ .244 in ]
Length
7 mm [ .276 in ]
Mating Tab Width
.63 mm [ .025 in ]
Details
Color
Blue
Number of Positions
2
Primary Locking Feature
On the terminal
Strain Relief
No
Connector Style
Housing for female terminals
Cable Exit Angle
180°
Number of Rows
1
Operating Temperature Range
-40 to 80 °C [ -40 to 176 °F ]
Sealed
No
UL Flammability Rating
UL 94-HB
Terminal Position Assurance
Yes
Polarized
Yes
Body Material
PBT GF
Connector System
Wire-to-Board/Device, Wire-to-Wire
Pitch
2.54 mm [ .1 in ]
Serviceable
No
