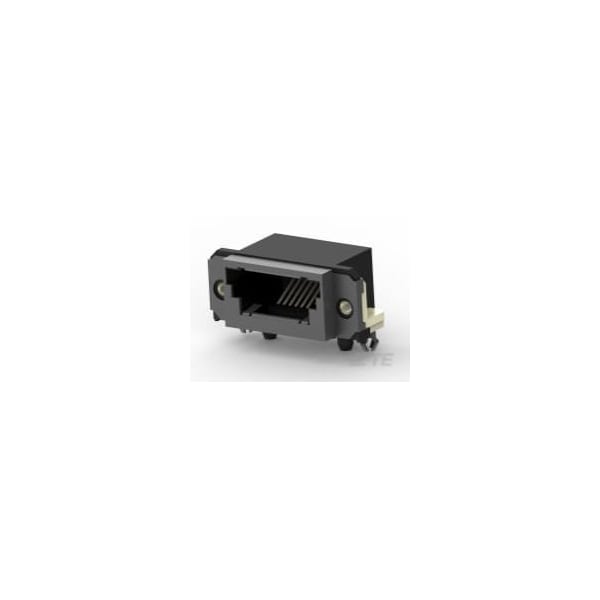

Te Connectivity 8 POSN SE SDL RCPT W/BDLK 1-1761199-3 - main

8 POSN SE SDL RCPT W/BDLK

  • Mfr # 1-1761199-3

  • Zoro # G901048788

product price:  $21.95
/ea
Sold in multiples of 17 for $373.15

Key Features

Number of Positions
8
Operating Temperature Range
-4 to 176°F
Housing Entry Style
Side
Keying
A
Centerline (Pitch)
.05 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1761199-3
Zoro #
G901048788
UPC #
-
Country of Origin
United States

Dimensions

Contact Mating Area Plating Thickness
50µin

Details

Number of Positions
8
Operating Temperature Range
-4 to 176°F
Housing Entry Style
Side
Keying
A
Centerline (Pitch)
.05 in
Circuit Application
Signal
Grounding Options
PCB and Panel Ground
Housing Material
Polyester GF
Connector Mounting Type
Board Mount
PCB Mount Retention Type
Boardlock
Product Type
Connector
Connector & Contact Terminates To
Printed Circuit Board
PCB Mount Retention
With
Contact Mating Area Plating Material
Gold
Housing Color
Black
Shield Plating Material
Tin over Nickel
Receptacle Configuration
Standard
Contact Base Material
Phosphor Bronze
Connector Style
Receptacle
Contact Current Rating (Max)
1.5 A
Number of Conductors
8
UL Flammability Rating
UL 94V-0
Connector System
Cable-to-Board
Shield Material
Brass

Description
