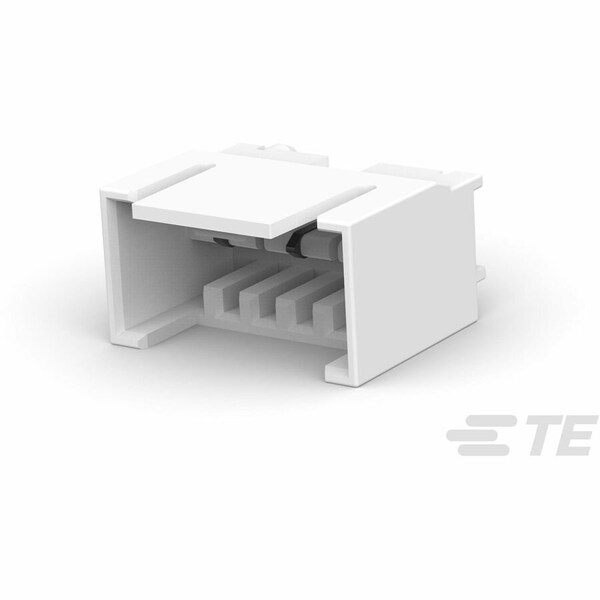

3/5P RAST 2.5 Tab Header Ex- Locking THV
Mfr # 1-1971921-5
Zoro # G800941388
product price:Â
$
0.66
/ea
Sold in multiples of 102 for $67.32
Key Features
Color
Natural
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Height
15.5 mm
Maximum Operating Temperature
120 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1-1971921-5
- Zoro #
- G800941388
- UPC #
- -
- Country of Origin
- China
Dimensions
- Height
- 15.5 mm
- Length
- 15.1 mm
Details
- Item
- PCB Mount Header
- Color
- Natural
- Max. Voltage
- 250V AC
- Maximum Voltage
- 250 V AC
- Maximum Operating Temperature
- 120 Degrees C
- UL 94 Flammability Rating
- V-0
- Material
- Nylon
- Connection Material
- Copper Alloy
- Features
- Shrouded
- Max. Temp.
- 120°C
- For Use With
- Connector/Cable Assembly
- Hole Center to Center
- 5 mm
- Number of Contacts
- 5
- Contact Type
- Tab
- Number of Rows
- 1
- Contact Finish
- Tin Plated
- Current Rating
- 6 A
- Flammability Rating
- UL 94 V-0
- Terminal Finish
- Tin Plated
- Connector Terminates To
- Printed Circuit Board
