  9. 40 NOVO MIL 30DP LEAD FREE
Shop All Headers & Wire Housings
Te Connectivity

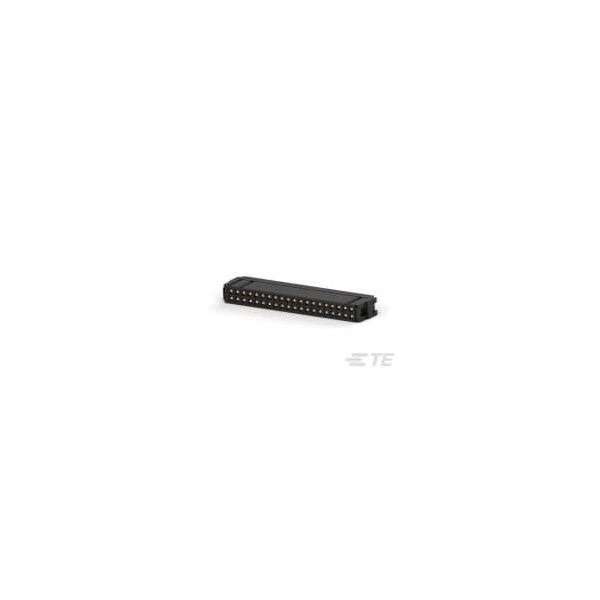

40 NOVO MIL 30DP LEAD FREE

product price: $2.79
/ea
Sold in multiples of 60 for $167.40
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Number of Rows 2
  • Standards CSA Certified; UL E28476; UL Recognized
  • Material Thermoplastic
  • Color Black
  • Width 0.2402 in
See all product information

Product Information

Dimensions

Width 0.2402 in
Height 15.16 mm
Length 55.37 mm
Min. Single Wire Size 28 AWG
Max. Insulation Dia. 0.94 mm
Max. Single Wire Size 26 AWG

Details

Item Connector
Number of Rows 2
Standards CSA Certified; UL E28476; UL Recognized
Material Thermoplastic
Color Black
Application Signal
Contact Plating Thickness 0.76 µm
Current Rating 1 A
Connector Type Receptacle
Terminal Finish Tin Plated
Number of Contacts 40
Connection Material Phosphor Bronze
Connector Terminates To Wire & Cable
Max. Temp. 105°C
Max. Voltage 250V AC
Terminal Type Through Hole - Solder; Insulation Displacement Crimp
Contact Type Socket
Flammability Rating UL 94 V-0
Hole Center to Center 2.54 mm
