  11. 4P .374 DR BARRIER W/WASHER

This item is Discontinued.

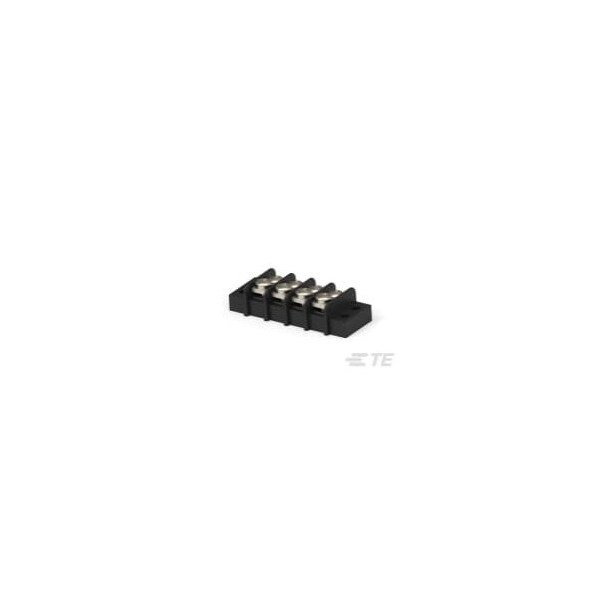

Te Connectivity 4P .374 DR BARRIER W/WASHER 1546307-4

4P .374 DR BARRIER W/WASHER (Discontinued)

  • Mfr # 1546307-4
  • Zoro # G600973961
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1546307-4
Zoro #
G600973961
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Length
2.17 in
Screw Size
6-32

Details

Color
Black
Voltage
300 V
Number of Levels
1
Screw Head Type
Combo Phil-Slot
Number of Positions
4
Terminal Plating Material
Tin
Connector Mounting Type
Panel
Housing Material
PBT
Mounting Options
End Mounting Ears
Barrier Strip Style
Dual Barrier
Block Style
Flat
Mounting Insert
Without
Number of Rows
2
Wire Range
22 to 12 AWG
Current Rating (Max)
20 A
UL Flammability Rating
UL 94V-0
Mounting Angle
Vertical
Product Type
Barrier Strip
Screw Plating Material
Nickel
Centerline (Pitch)
.375 in
Screw Material
Steel
Mounting Ears
With
Current Rating
20 A
Terminal Material
Brass
Operating Temperature Range
-40 to 120°C
