Shop TE CONNECTIVITY

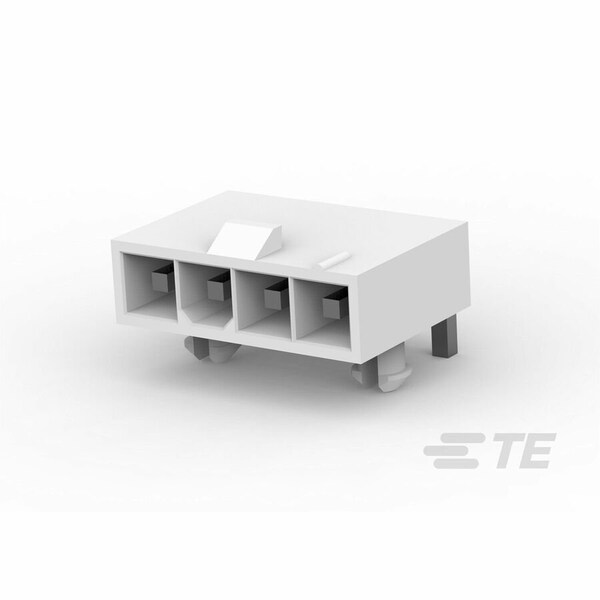

4P R/A HDR VAL-U-LOK V2 W/P

  • Mfr # 2029150-4

  • Zoro # G300938345

product price:
$
0.70
/ea
Sold in multiples of 132 for $92.40

Key Features

Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2029150-4
Zoro #
G300938345
UPC #
-
Country of Origin
China

Dimensions

Width
0.49 in
Height
5.4 mm
Max. Insulation Dia.
0.122 in
Length
18 mm

Details

Item
Header
Color
Natural
Insulation Material
Nylon
Max. Voltage
600V AC
Maximum Voltage
600 V AC
Application
Power
Current
9 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-2
Terminal Type
Through Hole - Solder
Features
Circuit Identification Feature; Shrouded
Material
Nylon
Hole Center to Center
4.2 mm
Max. Temp.
105°C
Contact Type
Pin
Number of Contacts
4
Number of Rows
1
Contact Finish
Tin Plated
Current Rating
9 A
Flammability Rating
UL 94 V-2
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Termination Style
Through Hole - Solder
