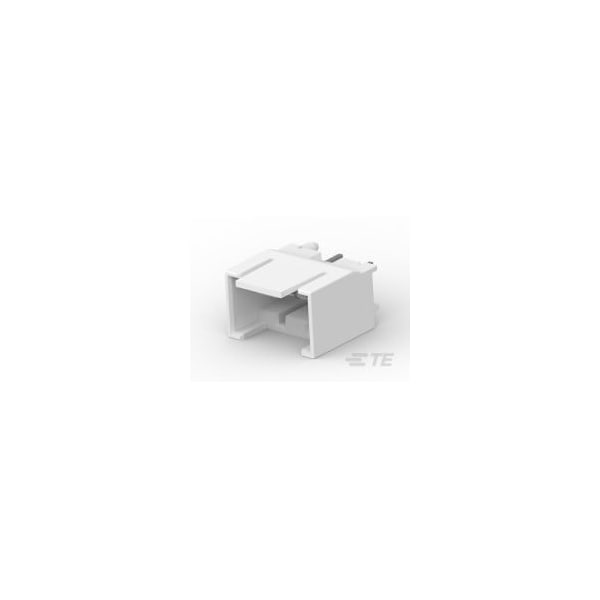

4P RAST 2.5 Tab Header Ex- Locking THV
Mfr # 2-1971817-4
Zoro # G000941218
product price: $0.49
/eaSold in multiples of 150 for $73.50
Key Features
Color
Natural
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Height
15.5 mm
Maximum Operating Temperature
120 Degrees C
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
2-1971817-4
Zoro #
G000941218
UPC #
-
Country of Origin
China
Dimensions
Height
15.5 mm
Length
0.49 in
Contact Plating Thickness
149.6 µin
Details
Item
PCB Mount Header
Color
Natural
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Maximum Operating Temperature
120 Degrees C
UL 94 Flammability Rating
V-0
Hole Center to Center
2.5 mm
Connection Material
Copper Alloy
Max. Temp.
120°C
For Use With
Connector/Cable Assembly
Features
Shrouded
Material
Nylon
Contact Finish
Tin Plated
Contact Type
Tab
Number of Contacts
4
Current Rating
6 A
Number of Rows
1
Flammability Rating
UL 94 V-0
Terminal Finish
Matte Tin Plated
Connector Terminates To
Printed Circuit Board
Description
