  11. 5P STRAIGHT SIDE ENTRY 3.5MM

This item is Discontinued.

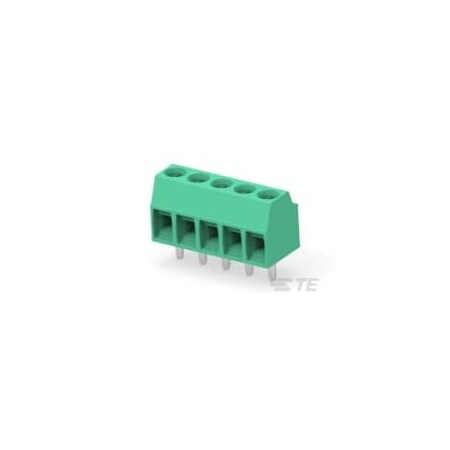

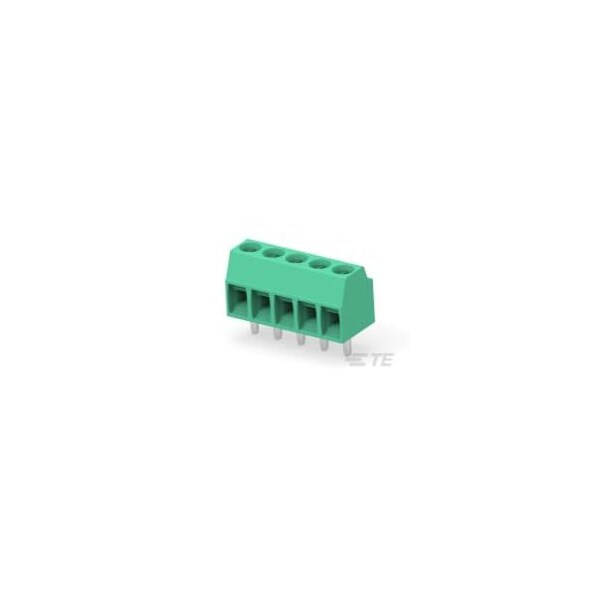

Te Connectivity 5P STRAIGHT SIDE ENTRY 3.5MM 1546551-5

5P STRAIGHT SIDE ENTRY 3.5MM (Discontinued)

  • Mfr # 1546551-5
  • Zoro # G201037635
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1546551-5
Zoro #
G201037635
UPC #
-
Country of Origin
Italy

Dimensions

Screw Size
M2
PCB Tail Length
.138 in

Details

Housing Color
Green
Voltage
300 VAC
Interlock
Without
Screw Flange
With
Screw Material
Copper Alloy
Operating Temperature Range
-40 to 230°F
Current Rating (Max)
12A
Block Type
Straight
Wire Entry Angle
Side
Wire Range
28 to 16 AWG
Closed End
With
Housing Material
PA 66
Centerline (Pitch)
.138 in
Number of Positions
5
Connector Style
Header
Stacked Levels
Without
Connector & Contact Terminates To
Printed Circuit Board
Screw Plating Material
Nickel
Contact Mating Area Plating Material
Tin
Connector System
Wire-to-Board
Side Stackable
Yes
Wire Protection
With
Circuit Application
Power & Signal
Contact Base Material
Copper Alloy
Mounting Angle
Vertical
Threaded Flange
Without
Number of Rows
1
Screwless Terminal Block
No
Connector Mounting Type
Board Mount
Contact Mount
Through Hole
Contact Current Rating (Max)
12A
