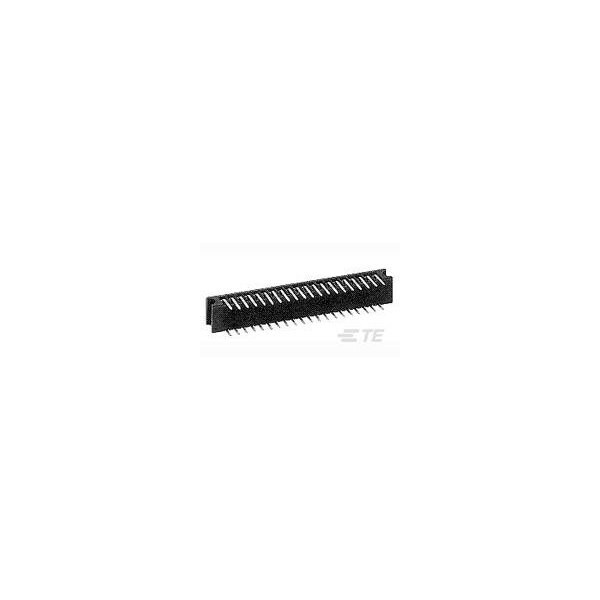

60 MODII 2PC CE RCPT ASSY RoHS
Mfr # 5-532956-9
Zoro # G301043499
product price: $16.39
/eaSold in multiples of 30 for $491.70
Key Features
Max. Voltage
250V AC
Max. Temp.
105°C
Application
Signal; High Temperature
Series
AMPMODU
Standards
CSA LE7189; UL E28476
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5-532956-9
Zoro #
G301043499
UPC #
-
Country of Origin
Mexico
Dimensions
Height
6.05 mm
Contact Plating Thickness
30 µin
Details
Item
PCB Mount Receptacle
Max. Voltage
250V AC
Max. Temp.
105°C
Application
Signal; High Temperature
Series
AMPMODU
Standards
CSA LE7189; UL E28476
Color
Black
Material
Thermoplastic
Terminal Finish
Tin Plated
Number of Rows
2
Contact Finish
Gold Plated
Connection Material
Phosphor Bronze
Connector Terminates To
Printed Circuit Board
Number of Contacts
60
Terminal Type
Through Hole - Solder
Hole Center to Center
2.54 mm
Contact Type
Socket
Flammability Rating
UL 94 V-0
Current Rating
3 A
Description
Documents & Resources
Ratings & Reviews
