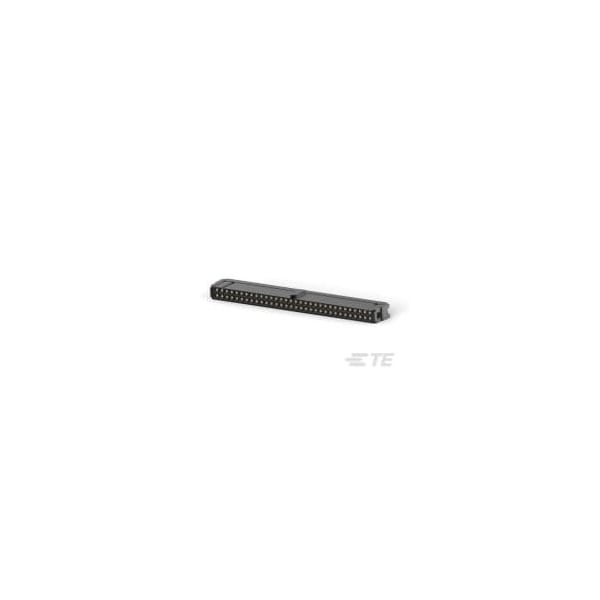

Te Connectivity 64 NOVO MIL/CTR 15DP LEAD FREE 1-1658621-2 - main

64 NOVO MIL/CTR 15DP LEAD FREE

  • Mfr # 1-1658621-2

  • Zoro # G401041692

product price:  $3.69
/ea
Sold in multiples of 50 for $184.50

Key Features

Number of Rows
2
Material
Thermoplastic
Height
15.16 mm
Standards
CSA Certified; UL E28476; UL Recognized
Length
85.85 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1658621-2
Zoro #
G401041692
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Height
15.16 mm
Length
85.85 mm
Width
0.2949 in
Min. Single Wire Size
28 AWG
Max. Insulation Dia.
0.94 mm
Contact Plating Thickness
0.38 µm
Max. Single Wire Size
26 AWG

Details

Item
Connector
Number of Rows
2
Material
Thermoplastic
Standards
CSA Certified; UL E28476; UL Recognized
Application
Signal
Color
Black
Terminal Finish
Tin Plated
Connector Type
Receptacle
Flammability Rating
UL 94 V-0
Max. Voltage
250V AC
Current Rating
1 A
Max. Temp.
105°C
Connection Material
Phosphor Bronze
Connector Terminates To
Wire & Cable
Terminal Type
Through Hole - Solder; Insulation Displacement Crimp
Hole Center to Center
2.54 mm
Contact Type
Socket
Number of Contacts
64
