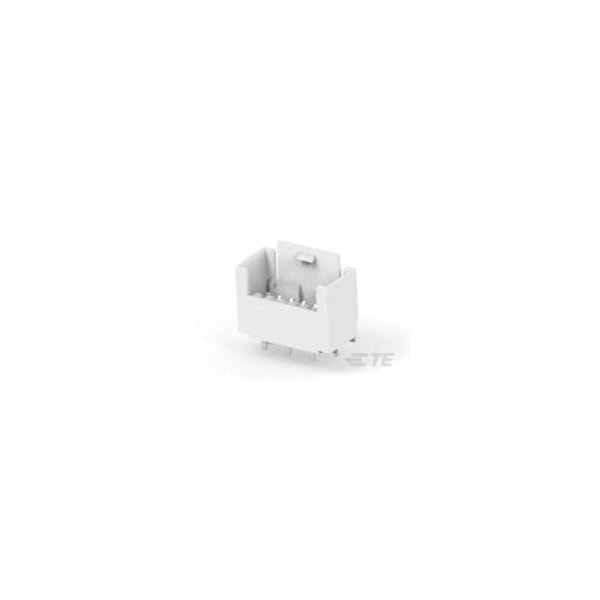

6P RAST 2.5 Tab Header Ex- Locking THV
Mfr # 1-1971837-6
Zoro # G300941215
product price: $0.80
/eaSold in multiples of 413 for $330.40
Key Features
Color
Natural
Insulation Material
Nylon
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Height
15.5 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1-1971837-6
Zoro #
G300941215
UPC #
-
Country of Origin
United States
Dimensions
Height
15.5 mm
Length
17.6 mm
Contact Plating Thickness
149.6 µin
Details
Item
PCB Mount Header
Color
Natural
Insulation Material
Nylon
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Maximum Operating Temperature
120 Degrees C
UL 94 Flammability Rating
V-0
For Use With
Connector/Cable Assembly
Material
Nylon
Features
Shrouded
Max. Temp.
120°C
Connection Material
Copper Alloy
Hole Center to Center
2.5 mm
Number of Rows
1
Number of Contacts
6
Contact Finish
Silver Plated; Tin Plated
Current Rating
6 A
Contact Type
Tab
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Matte Silver Plated
