Shop TE CONNECTIVITY

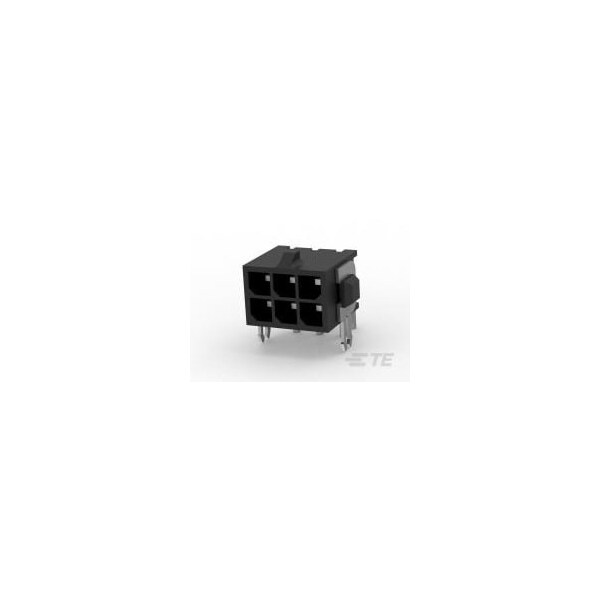

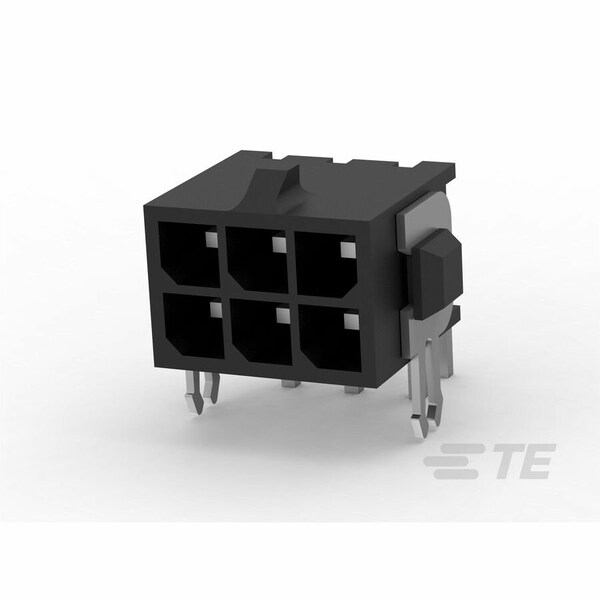

6POS MICRO MNL ASSY R/A THRU

  • Mfr # 3-794677-6
  • Zoro # G401044013
product price:
$
1.95
/ea
Sold in multiples of 48 for $93.60

Key Features

Min. Single Wire Size
30 AWG
Max. Voltage
250V AC, 250V DC
Max. Temp.
105°C
Application
Power
Standards
CSA Certified; UL E28476; UL Recognized
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3-794677-6
Zoro #
G401044013
UPC #
-
Country of Origin
China

Dimensions

Min. Single Wire Size
30 AWG
Height
11.55 mm
Length
13 mm
Max. Single Wire Size
20 AWG
Contact Plating Thickness
2.54 to 7.62 µm

Details

Item
Header
Max. Voltage
250V AC, 250V DC
Max. Temp.
105°C
Application
Power
Standards
CSA Certified; UL E28476; UL Recognized
Color
Black
Material
High Temperature Nylon
Flammability Rating
UL 94 V-0
Current Rating
5 A
Number of Contacts
6
Terminal Finish
Matte Tin Plated
Terminal Type
Through Hole - Solder
Connector Terminates To
Printed Circuit Board
Number of Rows
2
Contact Type
Pin
Hole Center to Center
3 mm
Contact Finish
Tin Plated

Documents & Resources
