  11. 7 POS 5.08MM TERMI-BLOK TOP WI

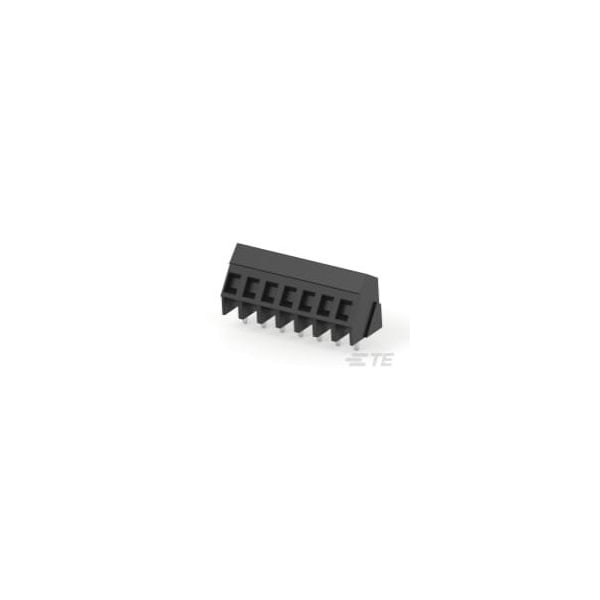

Te Connectivity 7 POS 5.08MM TERMI-BLOK TOP WI 1546074-7 - main

7 POS 5.08MM TERMI-BLOK TOP WI

  • Mfr # 1546074-7

  • Zoro # G700929981

product price: $3.15
/ea
Sold in multiples of 27 for $85.05

Key Features

Voltage
300 VAC
Color
Black
Wire Range
30 to 12 AWG
Number of Rows
1
PCB Tail Length
.15 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1546074-7
Zoro #
G700929981
UPC #
-
Country of Origin
Italy

Dimensions

PCB Tail Length
.15 in
Screw Size
M3
Pin Length
3.8 mm

Details

Voltage
300 VAC
Color
Black
Wire Range
30 to 12 AWG
Number of Rows
1
Operating Temperature Range
-40 to 230°F
Number of Positions
7
Centerline (Pitch)
.2 in
Contact Current Rating (Max)
17.5 A
Threaded Flange
Without
Closed End
Without
Screw Plating Material
Nickel
Wire Protection
With
Housing Color
Black
Connector Mounting Type
Board Mount
Contact Base Material
Brass
Circuit Application
Power & Signal
Contact Mating Area Plating Material
Tin
Wire Entry Angle
35°
Block Type
Stacking w/interlock
Header Type
Header Only
Interlock
With
Housing Material
PA 66
Screwless Terminal Block
No
Mounting Angle
Straight
Contact Mount
Through Hole
Connector System
Wire-to-Board
Connector & Contact Terminates To
Printed Circuit Board
Screw Material
Brass
Connector Style
Header
Current Rating (Max)
17.5 A
Screw Flange
Without
Stacked Levels
Without
Side Stackable
Yes
