This item is Discontinued.

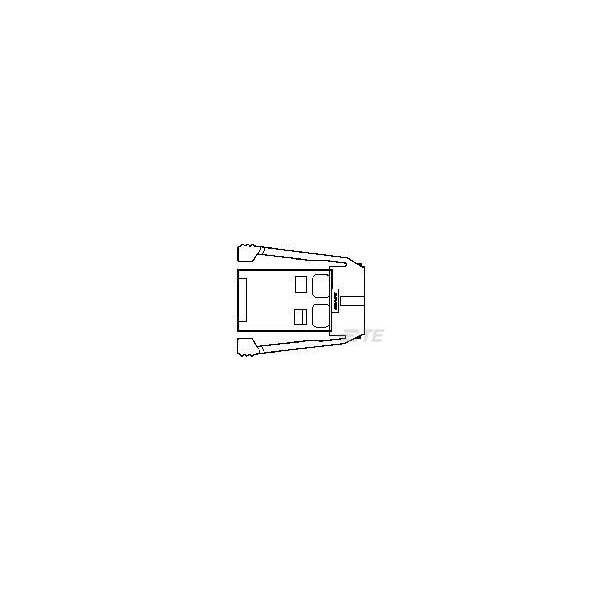

Te Connectivity 8 SDL RND PLUG ASSY 50 SERIES 1-520424-3

8 SDL RND PLUG ASSY 50 SERIES (Discontinued)

  • Mfr # 1-520424-3
  • Zoro # G700946469
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
1-520424-3
Zoro #
G700946469
UPC #
-
Country of Origin
China

Dimensions

Contact Mating Area Plating Thickness
50µin
Wire Size
26 AWG, 24 AWG
Conductor Insulation Diameter
1.14 to 1.27 in, .045 to .05 in

Details

Number of Positions
8
Shield Material
Carbon Steel
Cable Type
Round
Circuit Application
Signal
Centerline (Pitch)
.05 in
Housing Color
Smoke Gray
Connector System
Cable-to-Board
Connector Mounting Type
Cable Mount
Connector Style
Plug
Product Type
Connector
Connector & Contact Terminates To
Wire & Cable
Agency/Standard
CSA, UL
Keying
A
Contact Current Rating (Max)
1.5 A
Housing Material
Polycarbonate GF
Contact Mating Area Plating Material
Gold
Contact Base Material
Copper Alloy
Shield Plating Finish
Bright
Operating Temperature Range
-4 to 176°F
UL Flammability Rating
UL 94V-2
Receptacle Configuration
Standard
PCB Mount Retention
Without
Number of Conductors
8
Shield Plating Material
Tin

Description
