Shop TE CONNECTIVITY
See all product information
Create Account

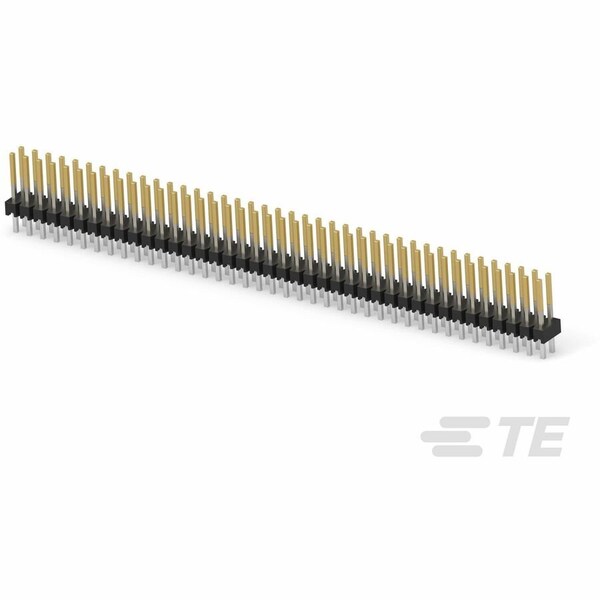

80 MODII HDR DRST B/A .100CL L
Mfr # 9-146253-0
Zoro # G500940599
product price:Â
$
18.25
/ea
Sold in multiples of 5 for $91.25
Key Features
Type
Breakaway
Color
Black
Insulation Material
Thermoplastic
Max. Voltage
30V AC
Maximum Voltage
30 V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 9-146253-0
- Zoro #
- G500940599
- UPC #
- -
- Country of Origin
- Mexico
- Item
- PCB Mount Header
- Type
- Breakaway
- Color
- Black
- Insulation Material
- Thermoplastic
- Max. Voltage
- 30V AC
- Maximum Voltage
- 30 V AC
- Current
- 3 A
- Standards
- CSA LR7189; UL E28476
- Maximum Operating Temperature
- 105 Degrees C
- UL 94 Flammability Rating
- V-0
- Max. Temp.
- 105°C
- Terminal Type
- Surface Mount; Through Hole
- Connection Material
- Phosphor Bronze
- Features
- With Board Standoff
- Material
- Thermoplastic
- Hole Center to Center
- 2.54 mm
- Current Rating
- 3 A
- Number of Rows
- 2
- Contact Finish
- Gold Plated; Matte Tin Plated
- Number of Contacts
- 80
- Contact Type
- Pin
- Connector Terminates To
- Printed Circuit Board
- Terminal Finish
- Tin Plated
- Flammability Rating
- UL 94 V-0
