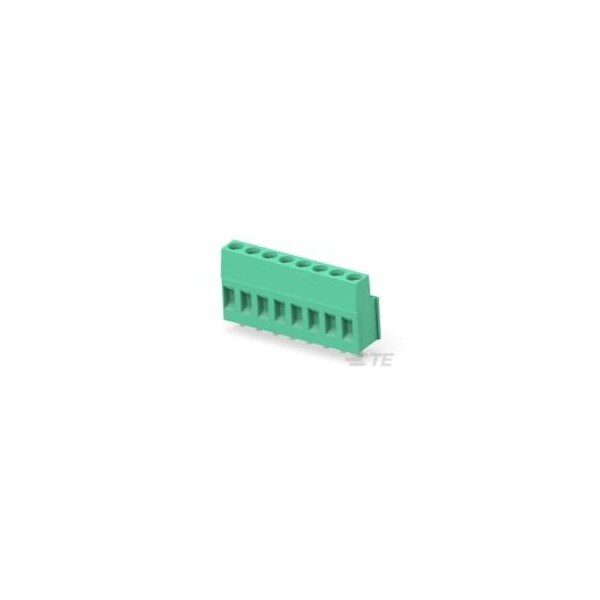

Te Connectivity 8P TERMI-BLOK PCB MOUNT 282856-8 - main

8P TERMI-BLOK PCB MOUNT

  • Mfr # 282856-8

  • Zoro # G300929947

product price: $3.65
/ea
Sold in multiples of 24 for $87.60

Key Features

Voltage
300 VAC
Contact Current Rating (Max)
24 A
Interlock
With
Contact Base Material
Brass
Contact Mating Area Plating Material
Tin
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
282856-8
Zoro #
G300929947
UPC #
-
Country of Origin
Italy

Dimensions

Screw Size
M3
PCB Tail Length
.138 in

Details

Voltage
300 VAC
Contact Current Rating (Max)
24 A
Interlock
With
Contact Base Material
Brass
Contact Mating Area Plating Material
Tin
Screwless Terminal Block
No
Connector & Contact Terminates To
Printed Circuit Board
Contact Mount
Through Hole
Stacked Levels
Without
Wire Range
30 to 12 AWG
Operating Temperature Range
-40 to 230°F
Connector System
Wire-to-Board
Circuit Application
Power & Signal
Screw Flange
Without
Connector Style
Header
Screw Material
Brass
Housing Material
PA 66
Closed End
Without
Wire Entry Angle
Side
Number of Positions
8
Housing Color
Green
Side Stackable
Yes
Number of Rows
1
Screw Plating Material
Nickel
Centerline (Pitch)
.197 in
Block Type
Stacking w/interlock
Mounting Angle
Straight
Current Rating (Max)
24 A
Connector Mounting Type
Board Mount
Wire Protection
With

Description
