Shop TE CONNECTIVITY

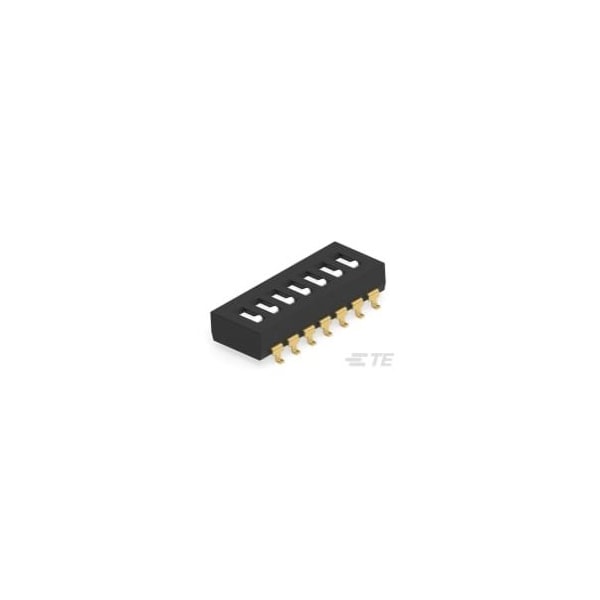

ADF07S04=DIP SWT FLUSH SMT-GW

  • Mfr # 3-1825059-1

  • Zoro # G600965874

product price:  $1.29
/ea
Sold in multiples of 200 for $258.00

Key Features

Length
.778 in
Height
.138 in
Mounting Type
Surface Mount
Contact Mating Area Plating Thickness
1.2µin
Termination Style
Outside L
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3-1825059-1
Zoro #
G600965874
UPC #
-
Country of Origin
China

Dimensions

Length
.778 in
Height
.138 in
Contact Mating Area Plating Thickness
1.2µin

Details

Mounting Type
Surface Mount
Termination Style
Outside L
Product Type
Switch
Auto-Insertable
Yes
Sealed
No
Number of Switches
7
Operating Temperature Range
-30 to 85°C
Number of Positions
7
Actuator Style
Flush, Slide
UL Flammability Rating
UL 94V-0
Actuator Color
White
Contact Mating Area Plating Material
Gold Flash
Contact Base Material
Copper Alloy
Housing Color
Black
Contact Current Rating
1A
Solder Tail Contact Plating
Nickel
Switch Type
DIP
Voltage Rating
5 VDC
Centerline
.1 in
Configuration (Pole-Throw)
Single Pole - Single Throw
Housing Material
Polyphenylene Sulfide (PPS)
