Shop TE CONNECTIVITY

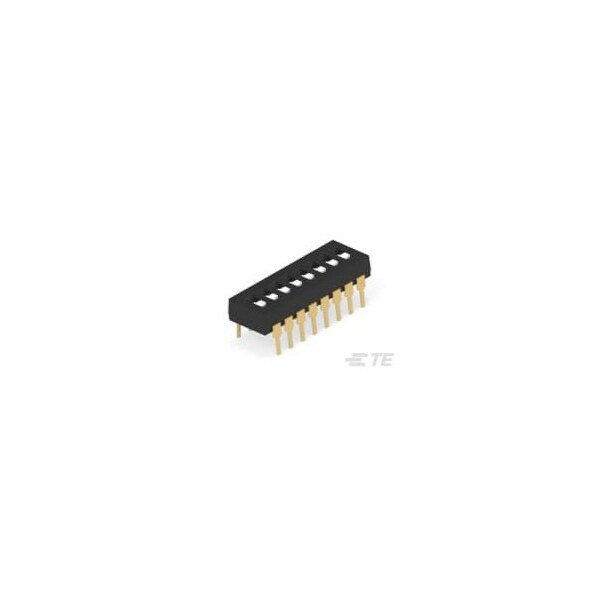

ADF0804=DIP SWT FLUSH THRU/HL

  • Mfr # 1-1825002-3

  • Zoro # G700965774

product price:
$
1.65
/ea
Sold in multiples of 60 for $99.00

Key Features

Height
.138 in
Length
.878 in
Termination Post Length
.157 in
Number of Positions
8
Number of Switches
8
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1825002-3
Zoro #
G700965774
UPC #
-
Country of Origin
Malaysia

Dimensions

Height
.138 in
Length
.878 in
Termination Post Length
.157 in
Contact Mating Area Plating Thickness
1.2µin

Details

Number of Positions
8
Number of Switches
8
Product Type
Switch
Actuator Style
Slide, Flush
Housing Color
Black
Contact Current Rating
1A
Configuration (Pole-Throw)
Single Pole - Single Throw
Centerline
.1 in
Solder Tail Contact Plating
Gold over Nickel
Switch Type
DIP
Operating Temperature Range
-30 to 85°C
Actuator Color
White
Sealed
No
UL Flammability Rating
UL 94V-0
Contact Mating Area Plating Material
Gold Flash
Contact Base Material
Copper Alloy
Mounting Angle
Vertical
Housing Material
Polyphenylene Sulfide (PPS)
Auto-Insertable
Yes
Mounting Type
Through Hole
Voltage Rating
5 VDC
