  11. A/L LOW PRO HDR 24P VERT HT

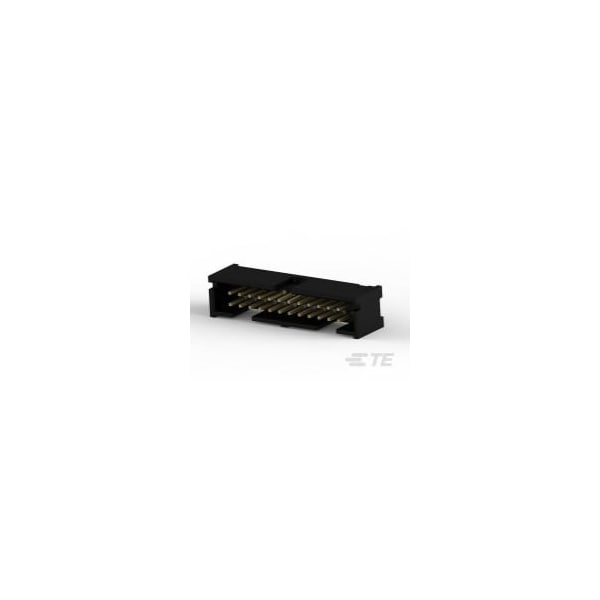

Te Connectivity A/L LOW PRO HDR 24P VERT HT 5104338-5 - main

A/L LOW PRO HDR 24P VERT HT

  • Mfr # 5104338-5

  • Zoro # G700940771

product price: $3.89
/ea
Sold in multiples of 65 for $252.85

Key Features

Color
Black
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
1 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5104338-5
Zoro #
G700940771
UPC #
-
Country of Origin
China

Dimensions

Height
8.813 mm
Length
38.1 mm
Contact Plating Thickness
15 µin

Details

Item
Connector
Color
Black
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
1 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
Glass-Filled High Performance Polyamide
Max. Temp.
105°C
Terminal Type
Through Hole
Features
With Board Standoff and Daisy Chain
Hole Center to Center
2.54 mm
Connection Material
Phosphor Bronze
Connector Type
Header
Contact Finish
Gold Flash over Palladium Nickel; Gold Plated
Number of Rows
2
Contact Type
Pin
Current Rating
1 A
Number of Contacts
24
Connector Terminates To
Printed Circuit Board
Terminal Finish
Tin Plated
Flammability Rating
UL 94 V-0
