Shop TE CONNECTIVITY

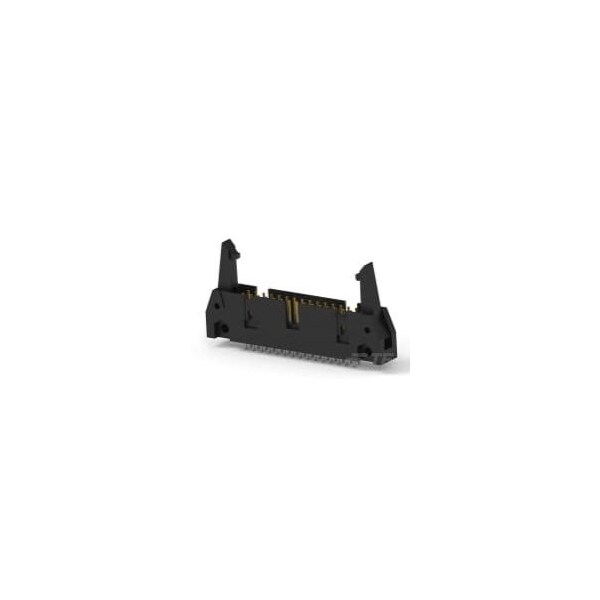

A/L UNIV HDR 30P VERT LG LAT

  • Mfr # 5499206-7

  • Zoro # G900939278

product price:  $7.19
/ea
Sold in multiples of 11 for $79.09

Key Features

Type
Header
Color
Black
Insulation Material
Glass-Filled Nylon/Polyester
Max. Voltage
250V AC
Maximum Voltage
250 V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5499206-7
Zoro #
G900939278
UPC #
-
Country of Origin
China

Dimensions

Height
13.94 mm
Length
57.4 mm
Contact Plating Thickness
0.76 µm

Details

Item
Connector
Type
Header
Color
Black
Insulation Material
Glass-Filled Nylon/Polyester
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
1 A
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Material
Glass-Filled Nylon/Polyester
Features
With Ejection Latches
Connector Type
Header
Hole Center to Center
2.54 mm
Max. Temp.
105°C
Connection Material
Phosphor Bronze
Terminal Type
Through Hole
Contact Type
Pin
Contact Finish
Gold Plated
Current Rating
1 A
Number of Rows
2
Number of Contacts
30
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated
