Shop TE CONNECTIVITY

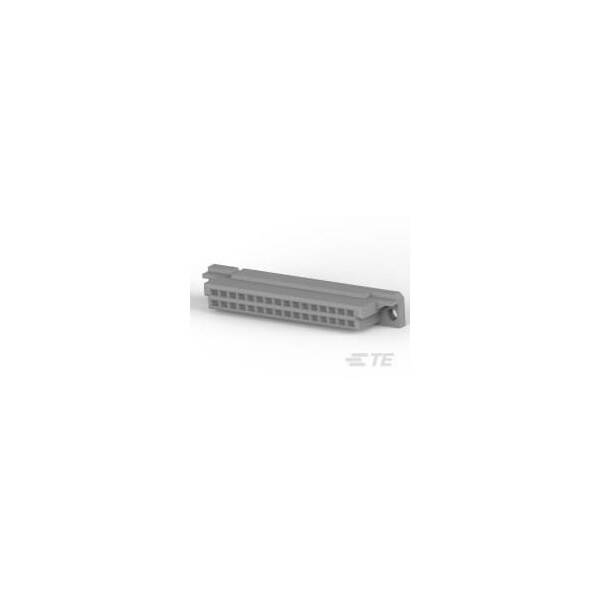

ASSEMBLY RECEPTACLE EUROCARD T

  • Mfr # 5536446-5

  • Zoro # G500945914

product price:
$
6.65
/ea
Sold in multiples of 12 for $79.80

Key Features

Color
Gray
Insulation Material
Glass-Filled Polymer
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5536446-5
Zoro #
G500945914
UPC #
-
Country of Origin
China

Dimensions

Width
0.317 in
Height
11.5 mm
Length
2.1 in
Contact Plating Thickness
0.76 µm

Details

Item
Connector
Color
Gray
Insulation Material
Glass-Filled Polymer
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Application
Signal
Current
1.5 A
Standards
CSA Certified; UL E28476; UL Recognized
Maximum Operating Temperature
105 Degrees C
UL 94 Flammability Rating
V-0
Hole Center to Center
2.54 mm
Connection Material
Copper Alloy
Connector Type
Receptacle
Terminal Type
Through Hole - Solder
Max. Temp.
105°C
Material
Glass-Filled Polymer
Contact Finish
Gold Plated
Number of Rows
2
Current Rating
1.5 A
Contact Type
Socket
Number of Contacts
32
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Tin Plated

Documents & Resources
