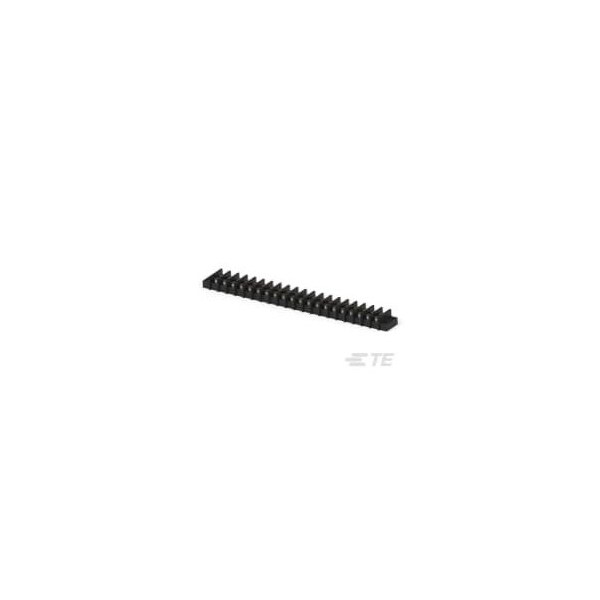

Barrier Strip, 2 Row, 20 A, 300 V, 12 AWG, Pin Termination
- Mfr # 2-1546306-0
- Zoro # G000973530
product price:Â
$
6.79
/ea
Sold in multiples of 12 for
$81.48
Key Features
Number of Rows
2
Termination Style
Pin
Current
20 A
Maximum Voltage
300V
Center Spacing
0.375 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 2-1546306-0
- Zoro #
- G000973530
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
- Item
- Barrier Strip
- Number of Rows
- 2
- Termination Style
- Pin
- Current
- 20 A
- Maximum Voltage
- 300V
- Center Spacing
- 0.375 in
- Color
- Black
- Mounting Insert
- Without
- Screw Material
- Steel
- Terminal Plating Material
- Tin
- Block Style
- Flat
- Barrier Strip Style
- Dual Barrier
- Number of Levels
- 1
- Connector & Contact Terminates To
- Printed Circuit Board
- Operating Temperature Range
- -40 to 120°C
- Terminal Material
- Brass
- Number of Positions
- 20
- Housing Material
- Thermoplastic
- Mounting Angle
- Vertical
- Screw Plating Material
- Nickel
- UL Flammability Rating
- UL 94V-0
- Mounting Options
- End Mounting Ears
Dimensions
- For Minimum Wire Size
- 22 AWG
- For Maximum Wire Size
- 12 AWG
- Overall Length
- 8.15 in
- Screw Size
- 6-32
