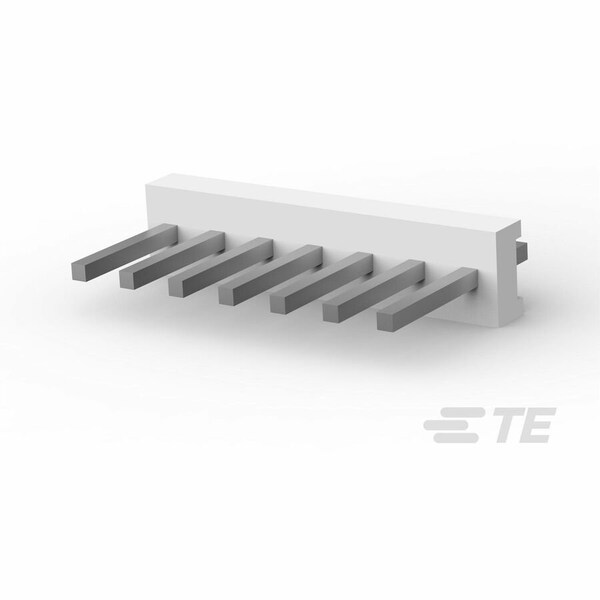

Board Connector, 7 Contact(S), 1 Row(S), Male, Straight, 0.156 Inch Pitch, Solder Terminal, Natural
Mfr # 640383-7
Zoro # G505894033
product price:Â
$
0.49
/ea
Sold in multiples of 179 for $87.71
Key Features
Max. Voltage
600V AC
Max. Temp.
105°C
Application
Power
Standards
CSA Certified; UL E28476; UL Recognized
Length
27.74 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 640383-7
- Zoro #
- G505894033
- UPC #
- -
- Country of Origin
- China
Dimensions
- Length
- 27.74 mm
- Contact Plating Thickness
- 2.54 µm
Details
- Item
- Header
- Max. Voltage
- 600V AC
- Max. Temp.
- 105°C
- Application
- Power
- Standards
- CSA Certified; UL E28476; UL Recognized
- For Use With
- MTA .156 Connector Assembly or SL .156 Connector Assembly
- Terminal Type
- Through Hole - Solder
- Features
- Unshrouded
- Material
- Glass-Filled Polyester
- Color
- Natural
- Connection Material
- Copper Alloy
- Hole Center to Center
- 3.96 mm
- Number of Rows
- 1
- Number of Contacts
- 7
- Contact Finish
- Tin Plated
- Current Rating
- 7 A
- Connector Terminates To
- Printed Circuit Board
- Flammability Rating
- UL 94 V-0
- Terminal Finish
- Tin Plated
- Contact Type
- Tab
Description
Board Connector, 7 Contact(S), 1 Row(S), Male, Straight, 0.156 Inch Pitch, Solder Terminal, Natural Insulator, Plug
